Product Name

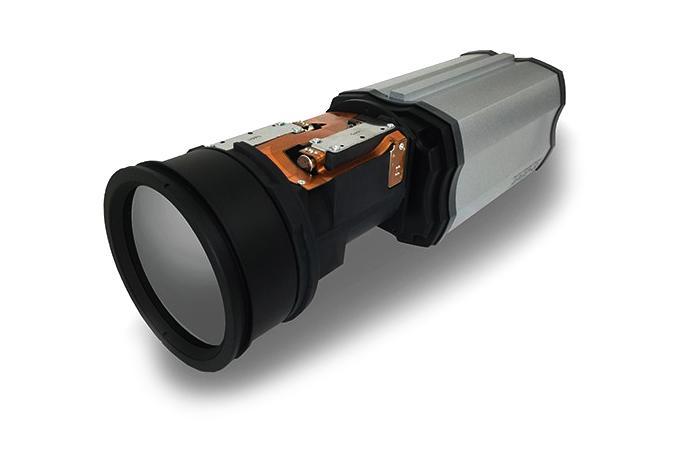

Model ARGO6L17-TA105
Series Infrared Thermal Cameras For Security
Catalog
Product Description

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.




Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.

35~105mm Continuous optical zoom, Continuous Digital zoom

IP network camera (ONVIF compliance)

Auto Focus
- High speed auto focus

Zoom, Pan & Tilt
- By only OnVif command over Ethernet.
  ※ No need RS-485/422 cable

With a built-in Web server

PoE(Power over Ethernet)
- Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003) ○ 8 kinds of color mode, 3 kinds of image filter in accordance with the environment





Imaging Performance
Detector TypeFocal Plane Array(FPA)
Uncooled microbolometer, Vox
Pixel Resolution640x480
Spectral Range8-14 μm
Average Transmission84%
F#1.6
FOVNarrow: 5.93° (H) x 4.75° (V)
Wide: 17.97° (H) x 14.33° (V)
Focal Length35 ~ 105mm(continuous zoom)
Measurement
NETD<70mK
Image Presentation
Digital Output16bit digital
Video streamingMPEG4, H.264
Frame rate30Hz
Environmental
Operating Temperature-20°C ~ +55°C
Storage Temperature-25°C ~ +60°C
Physical Characteristics
Weight1.4Kg
Size(L x H x W)293 x 82 x 85 (mm)
Included Components
Power SupplyPoE(Power over Ethernet)
ComplianceONVIF
Recommended Range(Focal Length: 105mm)
 Human(1.7m)CAR(2.3m)
Detection2,387m3,229m
Recognition1,050m1,421m
Identification525m710m






LSL SYSTEMS  ARGO6L17-TA105

Lens: 105mm
 Distance : 400M
 Object : Building name



LSL SYSTEMS  ARGO6L17-TA105 1

Lens: 105mm
 Distance : 1, 1.6, 3.3Km (Zoom In Max)
 Object : city View(BLd. & crane & Mt.)
