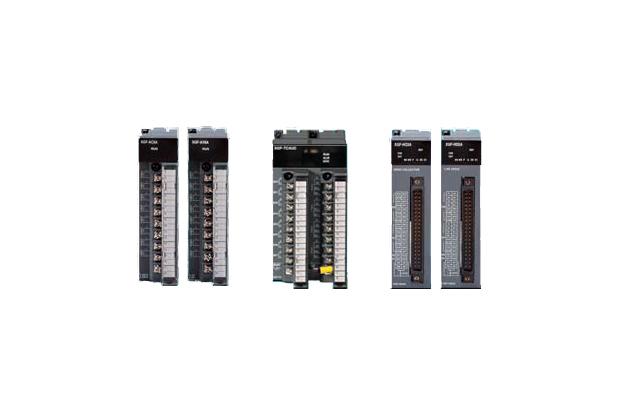

XGT Special Module

For sensor switch, control of temperature, weight, flow, motor, actuator, and even highly precise positioning control, XGT series offer diverse special modules such as analog, HSC, and positioning to satisfy complicated industrial needs.



Features

Fast processing of parameter and data of special modules

ㆍContinually refreshes operation data of special module by CPU module

ㆍIncludes contact points such as conversion data of AD/DA module and command of HSC & positioning modules



Easy- to-use (Easy operation parameter setting and data monitoring)

ㆍConvenient parameter setting available through XG5000

ㆍProvides useful functions that can monitor and test operation data and contact points through XG5000



Simple maintenance (Changing online module)

ㆍWithout turning off and holding CPU, users can change special modules with ease.





Analog input/output module

Features

ㆍFast conversion processing

ㆍHigh resolution

ㆍSetting and monitoring special module parameters through XG5000

ㆍSupports 4 types of digital output data formats

	Analog input module XGF-AV8A 8 channels, voltage XGF-AC8A 8 channels, current XGF-AC8A 8 channels, voltage/current XGF-AD16A 4 channels, voltage/current XGF-AW4S 16 channels, voltage/current		Analog output module AGF-DV4A 4 channels, voltage AGF-DC4A 4 channels, current AGF-DV8A 8 channels, voltage AGF-DC8A 8 channels, current AGF-DV4S 4 channels, voltage, lsolated AGF-DC4S 4 channels, current, lsolated
			Analog input/output module XGF-AH6A Input : 4ch, Voltage/Current Output : 2ch Voltage/Current



Temperature module

Features

ㆍInsulation between channels

ㆍSupports various input sensors (supporting C-type sensor)

ㆍVarious additional functions (average, filter, alarm, max/min value display)

ㆍSpecial module parameter setting and monitoring with XG5000

Temperature input module XGF-TC4S 4 channels, thermocouple input, Isolated XGF-RD4A 4 channels, RTD input XGF-RD4S 4 channels, RTD input, Isolated

Temperature controller XGF-RD8A 8 channels input: RTD XGF-TC4UD 4 channels input: voltage/current/TC/RTD 8 channels output: current/TR XGF-TC4RT 4 channels input: RTD 4 channels output: TR Control: 4loop



High speed counter module

Features

ㆍParameter setting and monitoring using XG5000

ㆍIncremental encoder available

ㆍSupporting various pulse input (5V, 12V, 24V)

ㆍVarious multiplication (1/2 phase pulse input)

ㆍExternal present input

ㆍProvides functions to prevent counting external signals

ㆍSupports HTL-level incremental encoder in the line-drive input type

High-speed counter module XGF-H02A 2 channels, Open collector XGF-HD2A 2 channels, Line driver XGF-H08A 8-channels high speed counter module, 8Ch



HART interface analogue/digital conversion module (XGF-AC4H, XGF-DC4H)

Features ㆍIt supports HART protocol in the input range of 4~20mA, bi-directional digital communication is available using analog signal wiring. If analog wiring is currently used, there is no need to add wiring for HART communication (HART communication is not supported in the range of 0~20mA) ㆍHigh accuracy ㆍOperation parameters setting/monitoring ㆍInput disconnection detection function

Event input module (XGF-SOEA)

Features ㆍSOE: Sequence Of Events Recorder ㆍI/O information collection to analyze the control system in Generation and Transformer ㆍEvent collection in every 1ms ㆍMax. 300ea data available ㆍData retain by built-in memory ㆍMax. installable module: 16ea ㆍEvent monitoring of history through SOE Viewer

Datalog module (XGF-DL16A)

Features ㆍSaves PLC device data without PC ㆍSaves PLC control data without missing any change    - Data can be saved whenever scanning is done or they can be saved at an interval of several ms(milliseconds). ㆍSaves a large volume of data files     - Long-term data saving is available since CF card and USB memory with a large volume of up to 16GB can be used.
