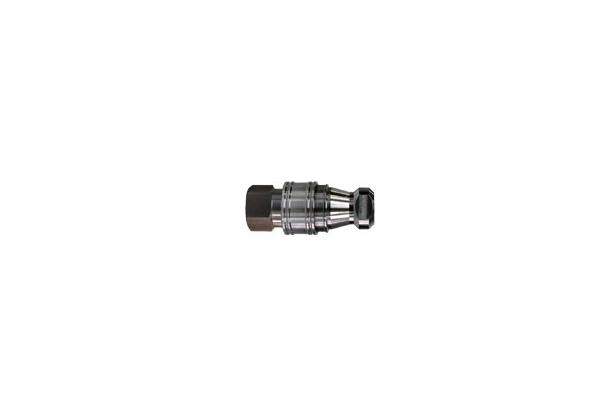

product Image
SP&TSP COUPLER
Model Name
-
Series
SP&TSP COUPLER
Data
-
Manufacturer information
provider logo
KYUNG NAM M. TECH

Coupler, Flashback arrestor, Mainfold

Problem with product info?
Update request
Manufacturer
KYUNG NAM M. TECH
Product Type
Machine
Brand
-
SKU
124022
Product Name
SP&TSP COUPLER
Model Name
-
Size
-
Weight
-
Product Details

▶ SP COUPLER



 -Two-way shut-off

The fluid does not leak when separating because the plug is built in both sides of socket and plug.

Can be made with appropriate materials depending on the used fluid (BSBM, SUS304, SUS316)




Item nameApplicationFull lengthBiangularWeight(g)
1SPT 1/8"4814*ø1886
2SPT 1/4"5819*ø22134
3SPT 3/8"6521*ø25209
4SPT 1/2"7229*ø35431
6SPT 3/4"8835*ø41714
8SPT 1"10241*ø481,006
10SPT 1-1/4"11554*ø591,596
12SPT 1-1/2"12463*ø692,345
16SPT 2"13277*ø863,668



Item nameApplicationFull lengthHEXARGONWeight(g)
1PPT 1/8"291419
2PPT 1/4"361735
3PPT 3/8"402160
4PPT 1/2"4429124
6PPT 3/4"5235213
8PPT 1"6241352
10PPT 1-1/4"7054596
12PPT 1-1/2"7563895
16PPT 2"80771,512



▶ TSP COUPLER


 - Straight through


The advantage is that the flow rate is high because there is no socket and plug that there is almost no pressure loss.


It is appropriate for fluid with high viscosity for being through type structure.

Can be made with appropriate materials depending on the used fluid (BSBM, SUS304, SUS316)






 CAMLOCK COUPLER

-Straight through

Structure that combines the plug by pull down socket’s lever and
