Coupler, Flashback arrestor, Mainfold
KN FLASH BACK ARRESTOR is a equipment that can prevent the possible fire counterflow GAS from firework back fire reaction.
One is piping back fire protector which has safety valve and the other is unique structured TORCH &COUPLER FLASH BACK ARRESTOR. They can be used depending on the purpose or the type of pipeline.
KN FLASH BACK ARRESTOR is made under performance criteria of Korea Occupational Safety and Health Agency Act.

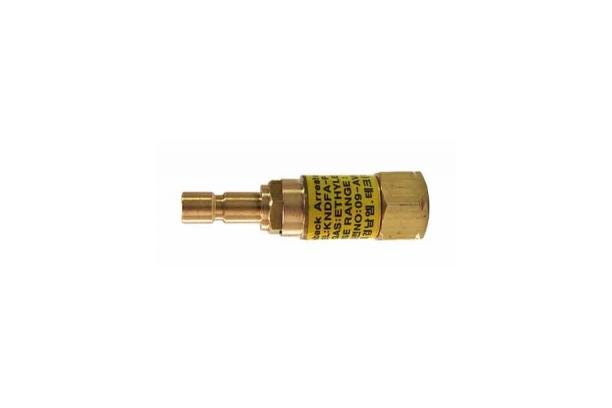

TORCH & COUPLER - FLASH BACK ARRESTOR
| Item name : KNDFA-M16L (Screw type) |
|
Material : BRASS Screw Size : 10A | ||
| Approval Number :10-AV1FD-0202 |
| Item name : KNDFA-S (Torch Plug type) |
|
Material : BRASS Screw Size : M16L(Gas type), M16R(Oxygen type) | ||
| Approval Number :11-AV1FD-0005 |
< TORCH & COUPLER - FLASH BACK ARRESTOR>
NOTICE
1)It can be installed at the end of gas distributor
2)The gas input direction follows the arrow on the surface of the FLASH BACK ARRESTOR.
3)Use it after checking the gas flow direction once it is entered.
4)When the changing period is overdue, being a expendable material replace and use.
