Product Name Dimensions
Model

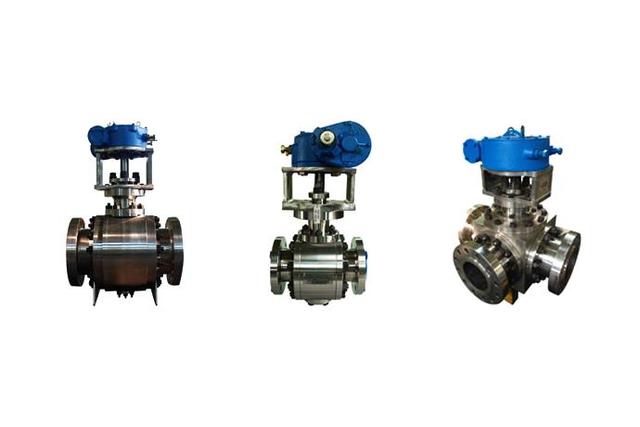

Series Metal Seated Ball Valve
Catalog
Product Description

Kyung Duck Indusutry Dimensions

SIZE A B C
RF RTJ WE
25A 127 140 127 25 125
50A 178 191 216 51 155
65A 190 203 241 64 175
80A 203 216 283 76 185
100A 229 241 305 102 210
150A 394 406 457 152 280
200A 457 470 521 203 330
250A 533 546 559 254 400
300A 610 622 635 305 445



Kyung Duck Indusutry Dimensions  1

SIZE A B C
RF RTJ WE
25A 165 178 165 25 125
50A 216 232 216 51 155
65A 241 257 241 64 175
80A 283 298 283 76 200
100A 305 321 305 102 225
150A 403 419 403 152 305
200A 502 518 521 203 350
250A 568 584 559 254 430
300A 648 663 635 305 480



Kyung Duck Indusutry Dimensions  2

SIZE A B C
RF RTJ WE
1" 127 140 127 25 108
2" 178 191 216 51 152
2-1/2" 190 203 241 64 178
3" 203 216 283 76 191
4" 229 241 305 102 229
6" 394 406 457 152 279
8" 457 470 521 203 343
10" 533 546 559 254 406
12" 610 622 635 305 483
14" 686 699 762 338 533
16" 762 775 838 386 597
18" 864 876 914 437 635
20" 914 927 991 490 699
24" 1067 1080 1143 592 813



Kyung Duck Indusutry Dimensions  3

SIZE A B C
RF RTJ WE
1" 165 178 165 25 124
2" 216 232 216 51 165
2-1/2" 241 257 241 64 191
3" 283 298 283 76 210
4" 305 321 305 102 254
6" 403 419 403 152 318
8" 502 518 521 203 381
10" 568 584 559 254 445
12" 648 663 635 305 521
14" 762 777 762 338 584
16" 838 853 838 386 648
18" 914 910 914 437 711
20" 991 1011 991 490 775
24" 1143 1166 1143 592 914



Kyung Duck Indusutry Dimensions  4

SIZE A B C
RF RTJ WE
1" 216 216 216 25 124
2" 292 295 292 51 165
2-1/2" 330 333 330 64 191
3" 356 359 356 76 210
4" 432 435 432 102 273
6" 559 562 559 152 356
8" 660 664 660 203 419
10" 787 791 787 254 508
12" 838 841 838 305 559
14" 889 892 889 338 602
16" 991 993 991 386 686
18" 1092 1095 1092 437 744
20" 1194 1199 1194 490 813
24" 1397 1407 1397 592 940



Kyung Duck Indusutry Dimensions  5

SIZE A B C
RF RTJ WE
1" 254 254 254 25 149
2" 368 371 368 51 216
2-1/2" 419 422 419 64 244
3" 381 384 381 76 241
4" 457 460 457 102 292
6" 610 613 610 152 381
8" 737 740 737 203 470
10" 838 841 838 254 556
12" 965 968 965 305 610
14" 1029 1039 1029 325 640
16" 1130 1140 1130 376 706
18" 1219 1232 1219 424 787
20" 1321 1334 1321 472 856
24" 1549 1567 1549 571 1041



Kyung Duck Indusutry Dimensions  6

SIZE A B C
RF RTJ WE
1" 254 254 254 25 149
2" 368 371 368 51 216
2-1/2" 419 422 419 64 244
3" 470 473 470 76 267
4" 546 549 546 102 311
6" 705 711 705 152 394
8" 832 841 832 203 483
10" 991 1000 991 254 584
12" 1130 1146 1130 290 673



Kyung Duck Indusutry Dimensions  7

SIZE A B C
RF RTJ WE
1" 308 308 308 25 159
2" 451 454 451 51 235
2-1/2" 508 514 508 64 267
3" 578 584 578 76 305
4" 673 683 673 102 356
6" 914 927 914 152 483
8" 1022 1038 1022 203 552
10" 1270 1292 1270 254 673
