Expert in Wire rod, deformed bar, steel wire, steel rod, annealing wire, flat coil and more
Made by drawing of

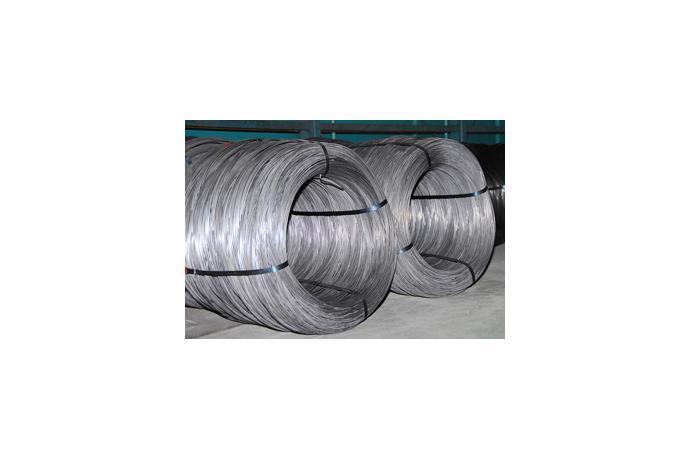

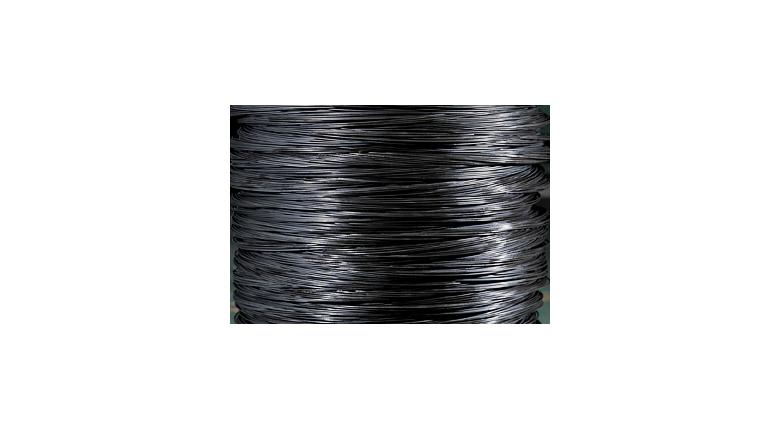

Low Carbon Steel Wire Rod, Low Carbon Steel Wire is widely used as a material of annealed wire, wire mesh, coated steel wire and etc. Also, it is used as a reinforcement in concrete, fume pipe and concrete pile.
To manufacture best product, KOSTEEL uses high quality Low Carbon Steel Also, process and quality of the product arecontrolled by strict application of ISO and KS.
* Wire drawing : metalworking process used to control the diameter of a wire by drawing the wire
Mertis of Low Carbon Steel Wire
1. Outstanding machineability
2. Customized production based on various steel grades
3. Soft and tough product with excellent ductility and toughness
4. Fast delivery with diversified small-quantity production system
Manufacturer : Pohang plant 2
Capacity : 70,800 tons/yr
Certification status :
- Koran (Korea )Industrial Standard (KS) : KSD3552
- Society of Automotive Engineers (SAE)
- Japanese Industrial Standard (JIS)
- ISO9001
| Commercial-quality steel wire | Steel wire for nails | Standard weight | ||||||
| Dimension(㎜) | Tensile strength | Dimension(㎜) | Tensile strength | 1COIL (kg) | ||||
| Diameter | Tolerance | Dimension(㎜) | N/㎟ | Diameter | Tolerance | Dimension(㎜) | N/㎟ | |
| 0.81~2.00 | ±0.03 | 1.80~2.30 | 600~1100 | 1.50~1.90 | ±0.05 | 1.40~2.30 | 750~1200 | 100±3 |
| 2.01~3.20 | ±0.04 | 2.31~3.20 | 550~1000 | 2.15~2.87 | ±0.06 | 2.15~3.75 | 700~1100 | 150±4 |
| 3.21~6.00 | ±0.05 | 3.21~4.50 | 450~900 | 3.05~3.75 | ±0.08 | 3.21~4.00 | 600~1000 | 200±5 |
| 6.01excess | ±0.06 | 4.51~7.50 | 400~800 | 4.20~5.20 | ±0.10 | 4.01~5.50 | 550~900 | 300±6 |
| 7.50excess | 330~750 | 5.51~7.00 | 500~850 | |||||
