Steel Wire Rod Wire

Model Name

Series

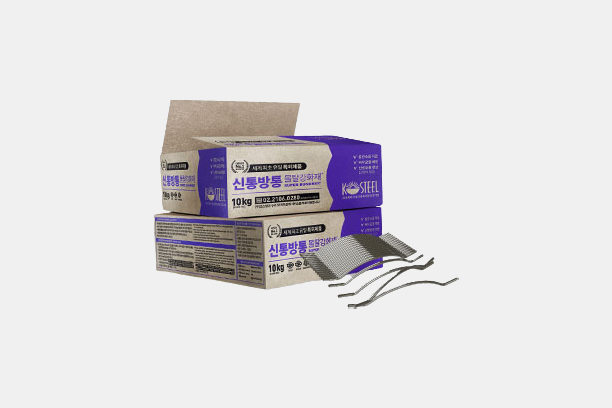

신통방통 몰탈강화재

View AllView All Series

Data

Manufacturer information

KOSTEEL

Expert in Wire rod, deformed bar, steel wire, steel rod, annealing wire, flat coil and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

KOSTEEL

Product Type

Machine

Brand

SKU

48441

Product Name

Steel Wire Rod Wire

Model Name

Size

Weight

Product Details

As one of the KOSTEEL`s

main products, SWRM is used from common household items (such as interior product, stationery and landscaping) to various industries (such as architecture, civil engineering and automobile).
At present, the best SWRM with wire diameter of 5.5 ~ 15.0 mm is manufactured in accordance with KSD3554.By continuous development and innovative quality control, KOSTEEL will maintain number 1 spot in steel industry.
Recently, with certification of JIS and CE, KOSTEEL is trying to enter the overseas market.

* SWRM is a low-carbon steel with carbon content under 0.22%

Merits of SWRM

1. Outstanding machineability

2. Customized production based on various steel grades

3. Soft and tough product with excellent ductility and toughness

4. Fast delivery with diversified small-quantity production system

Manufacturer : Pohang plant 1

Capacity : 0.4 million tons/yr

Certification status :
- Koran (Korea) Industrial Standard (KS) : KSD3554
- Society of Automotive Engineers (SAE)
- Japanese Industrial Standard (JIS) : Nov. 25, 201
- CE (Conformity to European)
- ISO9001

Steel grade		Permissible chemical contents								Tensile strength (N/㎣)		Recommended application
KS Standard code	KOSTEEL code	C	Si	Mn	P	S	Cr	Ni	Mo	T/S	El(%)	Recommended application
SWRM 6	SWRM 6A	0.01>	0.05>	0.20>	0.030>	0.015>	0.03>	0.03>	0.03>	271.3	42.4	Annealed Wire, Banding Wire, Steel Fiber
	SWRM 6T	0.01≥	0.03>	0.20>	0.04	0.016~ 0.035	0.05>	0.05>	0.05>	259.9	37.2	Banding wire under 1.0 mm
	SWRM 6SA	0.01≥	0.05≥	0.2≥	0.04≥	0.036~ 0.040	0.05≥	0.05≥	0.05≥	289.0	38.0	Steel Fiber
	SWRM 6N2	0.01>	0.03>	0.201~ 0.30	0.020>	0.015>	0.03>	0.03>	0.03>	292.8	36.3	Annealed Wire, Banding Wire, Steel Fiber
	SWRM 6N3	0.01≥	0.03≥	0.301~ 0.45	0.040≥	0.030≥	0.05≥	0.05≥	0.05≥	295.4	39.5	Steel Fiber with low type number
	SWRM 6M	0.011~ 0.03	0.03≥	0.101~ 0.25	0.030≥	0.030≥	0.05≥	0.05≥	0.05≥	326.1	30.1	Commercial-quality steel wire (reinforcement in concrete), Steel Fiber
	SWRM 6N6	0.01≥	0.05≥	0.201~ 0.65	0.040≥	0.040≥	0.05≥	0.05≥	0.05≥	304.4	35.4	Low carbon steel wire , Common MESH
	SWRM 6N8	0.01≥	0.10≥	0.651~ 1.00	0.031~ 0.100	0.050≥	0.05≥	0.05≥	0.05≥	346.1	33.9	MESH
	SWRM 6AP	0.01≥	0.10≥	0.20≥	0.031~ 0.090	0.050≥	0.05≥	0.05≥	0.05≥	315.9	35.6	MESH, Raw material for nail making (for export)
	SWRM 6NP	0.01≥	0.10≥	0.201~ 0.65	0.041~ 0.090	0.050≥	0.05≥	0.05≥	0.05≥	335.9	34.7	MESH, Raw material for nail making (for export)
	SWRM 6AS	0.01≥	0.051~ 0.35	0.30≥	0.045≥	0.045≥	0.03≥	0.03≥	0.03≥	352.9	30.4	MESH, Raw material for nail making (for export)
	SWRM 6NS	0.01≥	0.051~ 0.35	0.301~ 0.65	0.045≥	0.045≥	0.03≥	0.03≥	0.03≥	335.5	34.2	MESH, Raw material for nail making (for export)
	SWRM 6M3	0.031~ 0.04	0.04≥	0.101~ 0.30	0.030≥	0.030≥	0.05≥	0.05≥	0.05≥	349.6	30.1	Low carbon steel wire , Steel Fiber, Full theads bolt
	SWRM 6L	0.041~ 0.05	0.04≥	0.30≥	0.030≥	0.030≥	0.05≥	0.05≥	0.05≥	350.4	31.2	Low carbon steel wire, MESH, Full theads bolt
	SWRM 6LP	0.011~ 0.08	0.10≥	0.60>	0.031~ 0.090	0.050≥	0.05≥	0.05≥	0.05≥	354.8	28.2	Low carbon steel wire, MESH
	SWRM 6LS	0.031~ 0.05	0.101~ 0.35	0.301~ 0.90	0.045≥	0.045≥	0.30≥	0.30≥	0.30≥	442.4	28.6	Low carbon steel wire, MESH, Full theads bolt
	SWRM 6Y	0.031~ 0.08	0.10≥	0.401~ 0.85	0.040≥	0.040≥	0.05≥	0.05≥	0.10≥	404.1	28.9	Low carbon steel wire, MESH, Full theads bolt, TIE
SWRM 8	SWRM 8A	0.051~ 0.07	0.04≥	0.201~ 0.40	0.030≥	0.030≥	0.05≥	0.05≥	0.05≥	382.8	29.8	low carbon steel wire(Concrete pile), Raw material for nail making , TIE, MESH
	SWRM 8L	0.071~ 0.10	0.04≥	0.401~ 0.60	0.030≥	0.030≥	0.05≥	0.05≥	0.05≥	394.0	29.3	low carbon steel wire(Concrete pile), Raw material for nail making , TIE, MESH
	SWRM 8LP	0.061~ 0.10	0.10≥	0.60≥	0.035~ 0.100	0.050≥	0.05≥	0.05≥	0.05≥	429.1	29.0	Steel Nail, TIE, MESH
	SWRM 8LS	0.061~ 0.10	0.35≥	0.90≥	0.045≥	0.045≥	0.06~ 0.30	0.06~ 0.30	0.06~ 0.30	414.3	24.8	Steel Nail, TIE, MESH
	SWRM 8Y	0.031~ 0.10	0.35≥	0.851~ 1.20	0.040≥	0.040≥	0.05≥	0.05≥	0.05≥	474.0	27.5	Steel Nail, TIE, MESH
	SWRM 8N	0.031~ 0.10	0.051~ 0.35	0.451~ 1.40	0.040≥	0.040≥	0.06~ 0.30	0.06~ 0.30	0.06~ 0.30	528.6	22.0	Steel Nail, TIE (can be conversed for steel bar)
SWRM 10	SWRM 10L	0.101~ 0.12	0.05≥	0.301~ 0.60	0.040≥	0.040≥	0.05≥	0.05≥	0.05≥	410.9	27.8	Low carbon steel wire, Steel Nail, TIE, MESH
SWRM 12	SWRM 12L	0.121~ 0.15	0.05≥	0.301~ 0.60	0.040≥	0.040≥	0.05≥	0.05≥	0.05≥	436.5	30.0	Steel Nail, TIE
SWRM 15	SWRM 15L	0.131~ 0.15	0.05≥	0.601~ 0.90	0.045≥	0.045≥	0.05≥	0.05≥	0.05≥	478.8	26.0	Steel Nail
SWRM 15	SWRM 15K	0.101~ 0.18	0.051~ 0.35	0.301~ 0.90	0.050≥	0.050≥	0.05≥	0.05≥	0.05≥	500.3	26.8	Steel Nail
SWRM 17	SWRM 17L	0.151~ 0.18	0.05≥	0.601~ 0.90	0.045≥	0.045≥	0.05≥	0.05≥	0.05≥	472.6	28.9	Steel Nail
SWRM 20	SWRM 20L	0.181~ 0.23	0.05≥	0.601~ 0.90	0.045≥	0.045≥	0.05≥	0.05≥	0.05≥	501.1	23.5	Common nail, Steel bar
	SWRM 20N	0.031~ 0.10	1.50≥	1.401~ 1.80	0.050≥	0.050≥	0.60≥	0.60≥	0.60≥	552.7	26.5	Common nail, Steel bar
	SWRM 20S	0.031~ 0.10	1.5≥	0.901~ 1.80	0.05≥	0.05≥	0.6≥	0.6≥	0.6≥	-	-	Common nail, Steel bar
SWRM 22	SWRM 30S	0.031~ 0.130	1.5≥	0.901~ 1.80	0.05≥	0.05≥	0.6≥	0.6≥	0.6≥	-	-	Common nail, Steel bar
SWRM 22	SWRM 40S	0.051~ 0.20	1.5≥	0.301~ 2.0	0.05≥	0.05≥	0.6≥	0.6≥	0.6≥	-	-	Common nail, Steel bar

KOSTEEL

Expert in Wire rod, deformed bar, steel wire, steel rod, annealing wire, flat coil and more

Since 1977, KOSTEEL has grown up to be a Korea's representative corporation for low carbon steel wire rod and downstream processed product by manufacture　of various products and technology development. To reborn as a world's best rolling mill corporation with competitiveness and advanced technology, KOSTEEL has carried out decisive investment and renovation project. Also, KOSTEEL has challenged and changed through cost saving, productivity growth, proess improvement by PEV(Performance Enhancing Vehicle) project, new products development, stabilization of ERP(Enterprise Resource Planning), introduction of Block Mill and so on. To face rapidly changing global competition, KOSTEEL will challenge restless to be a 'hidden champion' in technology, quality and productivity both nominally and virtually based on long-term development project. For this, an overseas subsidiary in Vietnam, KOSTEEL Vina will be a cornerstone for globalization. KOSTEEL promises to prosper with customers, to be a world representative corporation for low carbon steel wire rod, and to contribute for social welfare with world best technology.
