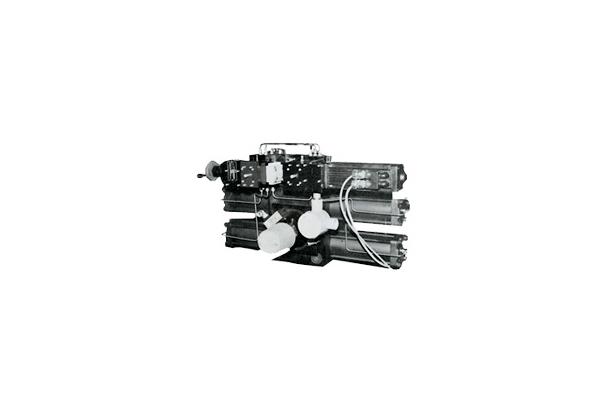

▶3800LA/3800RA/3800DA: Microprocessor Controlled Actuators
This Series represents intelligent digital actuators targeting the control method of the next generation.
They are process control devices of multi-function hybrid structure incorporationg computer functions to fully utilize advan-tages of both electric and hydraulic types, ie., high speed and large output. Major components are digital motor, gear pump and electronic circuit. Unique hydraulic Flow Match System (pat-ented) controlled by direct digital signals secures stabilized high speed response and high accurancy action. Fail safe upon power loss. Furthermore, with three kinds of power modules that have redundancy and high power, electric safety is enhanced. With this Series, we have come closest ever to the concept of "Maintenance free."
Specification
Type | Linear Stem Motion Type | Rotary Stem Motion Type | Crank Arm Motion Type |
3800LA | 3800RA | 3800DA | |
Max. output | 533787 N | 11300 N·m | 11300 N·m |
Power source | AC100V 50/60 HZ Options: AC120V, AC220V, AC440V, DC48V, DC24V | ||
Max. stroke/angle | 550mm | ||
Control signal | 4 to 20mA DC, Direct-digital, Pulse, Two position, Manual(up/down push-button) | ||
Environment temp. | Actuator: -30 to +70°(Options: +93°) CONTOROL ENCLOSURE; -40 to +60° | ||
Deadband | 0.05%(minimum) Selectable at the PCP between 0.05% and 5.0% of calibrated signal span | ||
Positioning accuracy | < 0.15% of full stroke | ||
Linearity | < 0.15% of full stroke | ||
Repeatability | < 0.15% of full stroke | ||
Enclosure type | NEMA 4 × (STD), FM approved Class 1, Div.2, Groups A, B, C & D and NEMA 4 × | ||
Options | Spring return type, Position Transmitter, Limit Switches, Manual Override. | ||
