  • KOREA JOINT

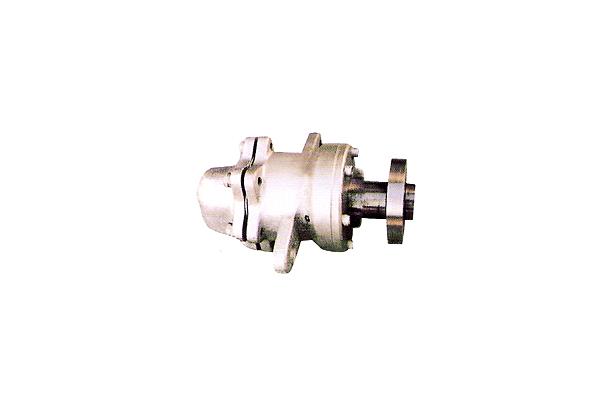

    Rotary Joint
    Model
    HR-3815
    Series
    Rotary Joint (R-3800 Series)

    Product Description

     CEFGHIJLL4L5L6NOPQRSTU
    15APT1/2722410110151401551327745142545621184Φ9
    20APT3/4862710130151601741508550183054741384Φ11
    25APT1923612140151702031709455233560801494Φ11
    40APT11/211445121801922024820211063345075961694Φ11
    50APT21405414200192402552151136548659512019104Φ14
    65APT21/2172651622023270300252145706080110

    136

    20124Φ14
    80APT319278162402329035829818682709012515420126Φ14







    STRUCTURE


    • SHAFT

    Shaft rotates by attaching to rotation body including Roller, Drum. For the method of attachment, there are two kinds of (screw type) and [FLANGE type]. As taper screw for pipe of KS, as for direction, from the direction of Roller or Drum rotation to attach Rotary Joint, it's [left screw if clockwise) [right screw if counter-clockwise] In case of Flange, there's no relation with rotation direction of Shaft. In addition, in the middle of Shaft, there's sliding part of spherical surface.


    • HEAD

    It's the connect part of supply and discharge of fluid, and INNER PIPE is attached to compound. As for Inner Pipe, Taper screw for KS pipe is concluded if screw type, and screw direction of Inner Pipe corresponds to screw direction of Shaft. And, in case of Flange Type, only with right screw, Lock Nut is used as the PARALLEL PIPE THREADS.


    • BODY

    In the right & left of Body, there's a hole to install Stopper so prevents rotation of body for the initial rotation.


    MAXIMUM PRESSURE15Kgf / ㎠G
    MAXIMUM TEMPERATURE300℃
    MAXIMUM ROTATION NUMBER10A-25A 300rpm32A-80A 150rpm
    FLUIDsteam, heat water, heat medium, cooling water, oil, air
