Overview
- Summary
- A company specializing in the research, development, and manufacturing of various industrial joints, including Rotary Joints, Swivel Joints, Ball Joints, and Syphon Hoses.A company specializing in the research, development, and manufacturing of various industrial joints, including Rotary Joints, Swivel Joints, Ball Joints, and Syphon Hoses.
- Key Products/Technologies

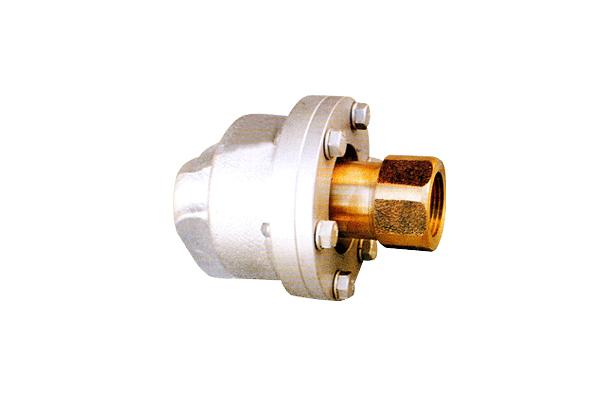

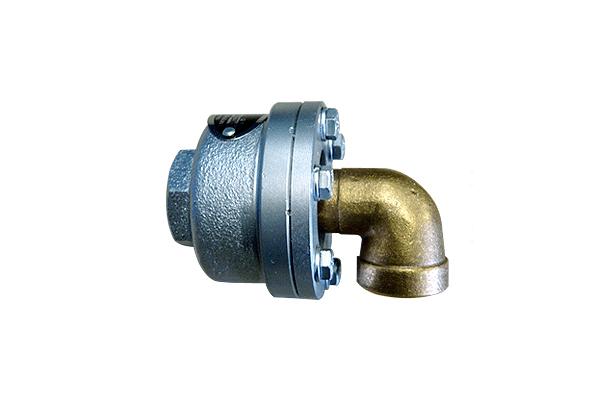

- Rotary Joint: The company offers a diverse range of models such as HR-5021, HR-5006, HR-5011-20A, HR-5205-15A, HR-6012-M16, HR-2205, HR-3701, HR-3702, HR-3725, HR-3801, and HR-3802. Its design features a head structure for fluid supply and discharge, robust connections using KS parallel pipe threads and Lock Nuts, and various configurations including single L-type and double internal pipe rotating types. The joints incorporate a Seal-cum-Bearing with both sealing and bearing functions, utilizing high-performance Carbon Bearings for a completely lubrication-free operation. The R-2000 series provides performance with a maximum pressure of 10Kgf/㎠G, a maximum temperature of 100℃, and a maximum rotation speed of 1500rpm (for small diameters), suitable for various fluids like water, air, chemicals, and oil. The R-3800 series handles high-temperature fluids such as steam, hot water, thermal oil, cooling water, oil, and air, with a maximum pressure of 15Kgf/㎠G, a maximum temperature of 300℃, and a maximum rotation speed of 300rpm (for small diameters).Rotary Joint: The company offers a diverse range of models such as HR-5021, HR-5006, HR-5011-20A, HR-5205-15A, HR-6012-M16, HR-2205, HR-3701, HR-3702, HR-3725, HR-3801, and HR-3802. Its design features a head structure for fluid supply and discharge, robust connections using KS parallel pipe threads and Lock Nuts, and various configurations including single L-type and double internal pipe rotating types. The joints incorporate a Seal-cum-Bearing with both sealing and bearing functions, utilizing high-performance Carbon Bearings for a completely lubrication-free operation. The R-2000 series provides performance with a maximum pressure of 10Kgf/㎠G, a maximum temperature of 100℃, and a maximum rotation speed of 1500rpm (for small diameters), suitable for various fluids like water, air, chemicals, and oil. The R-3800 series handles high-temperature fluids such as steam, hot water, thermal oil, cooling water, oil, and air, with a maximum pressure of 15Kgf/㎠G, a maximum temperature of 300℃, and a maximum rotation speed of 300rpm (for small diameters).

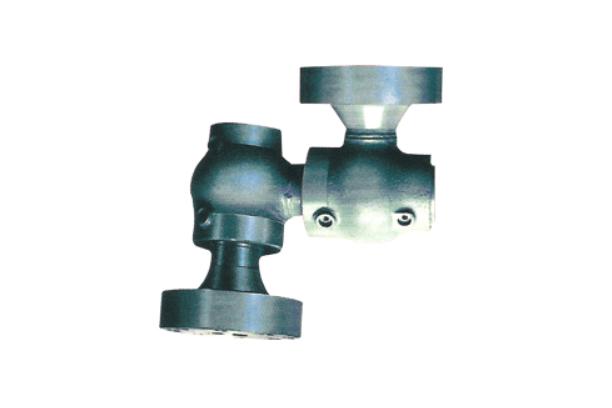

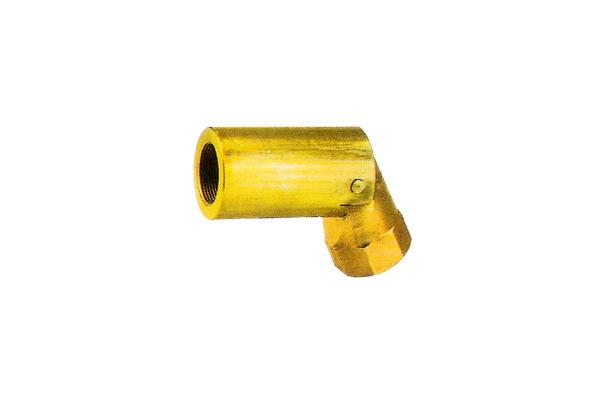

- Swivel Joint: Development of model lines including U-2000 (D), U-3000 (C), HR-ADF-15A, U-5000 (B), and U-4000 (W). Applicable to a wide range of fluids such as water, air, oil, gas, and petroleum products. Service temperature ranges up to 100℃ with NBR Packing and up to 180℃ with Viton Packing. High service pressure handling capabilities, up to 420kg/cm²G with T-packing and 210kg/cm²G with U-packing. Support for various connection methods including Female Thread, bevel ends, socket welding, or flanges.Swivel Joint: Development of model lines including U-2000 (D), U-3000 (C), HR-ADF-15A, U-5000 (B), and U-4000 (W). Applicable to a wide range of fluids such as water, air, oil, gas, and petroleum products. Service temperature ranges up to 100℃ with NBR Packing and up to 180℃ with Viton Packing. High service pressure handling capabilities, up to 420kg/cm²G with T-packing and 210kg/cm²G with U-packing. Support for various connection methods including Female Thread, bevel ends, socket welding, or flanges.
- Ball Joint: Production of model lines OB 6191, OB 6291, and OB 6391. Capability to withstand high-temperature environments up to 230℃ (some products up to 300℃). Compact and lightweight design for easy handling and piping installation. Completely lubrication-free type for convenient maintenance and suitability for alternating cooling and heating applications. Strong durability against impact and an automatic self-aligning function for stable piping connections.Ball Joint: Production of model lines OB 6191, OB 6291, and OB 6391. Capability to withstand high-temperature environments up to 230℃ (some products up to 300℃). Compact and lightweight design for easy handling and piping installation. Completely lubrication-free type for convenient maintenance and suitability for alternating cooling and heating applications. Strong durability against impact and an automatic self-aligning function for stable piping connections.

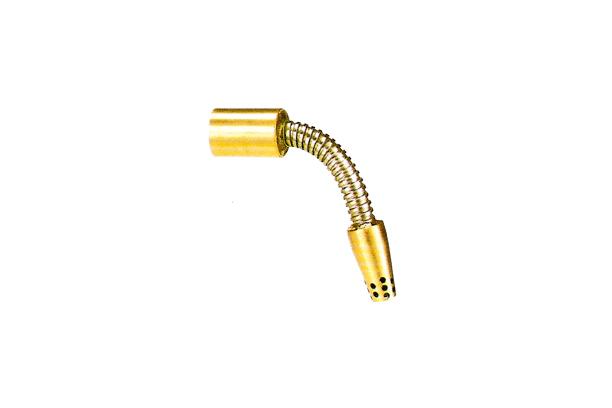

- Syphon Hose: Provision of HS-0020 and HS-8040 models.Syphon Hose: Provision of HS-0020 and HS-8040 models.
- Core Advantages
- Continuous research and development capabilities for high-quality product manufacturing.Continuous research and development capabilities for high-quality product manufacturing.
- Stable business operations based on accumulated technology and customer trust, with consistent growth since 2008.Stable business operations based on accumulated technology and customer trust, with consistent growth since 2008.
- Ensured ease of handling and piping installation through compact and lightweight designs.Ensured ease of handling and piping installation through compact and lightweight designs.
- Reduction of maintenance costs and enhanced convenience through the development of completely lubrication-free products.Reduction of maintenance costs and enhanced convenience through the development of completely lubrication-free products.
- Durability against impact and suitability for alternating cooling and heating applications.Durability against impact and suitability for alternating cooling and heating applications.
- Improved efficiency and stability of piping work with automatic self-aligning functions.Improved efficiency and stability of piping work with automatic self-aligning functions.
- Target Industrie
- Supply of core components for machinery and automation industries.Supply of core components for machinery and automation industries.
- Special industrial machinery and equipment such as HOT-PRESS, KNEADER, vulcanizers, and Banbury mixers.Special industrial machinery and equipment such as HOT-PRESS, KNEADER, vulcanizers, and Banbury mixers.
- Various fluid transfer systems including steam, hot water, thermal oil, cooling water, oil, air, gas, and petroleum products.Various fluid transfer systems including steam, hot water, thermal oil, cooling water, oil, air, gas, and petroleum products.
- Industrial processes and piping systems in high-temperature and high-pressure environments.Industrial processes and piping systems in high-temperature and high-pressure environments.
- Major Markets
- Certifications/Patents
- No officially confirmed patent or certification details, but continuous technological development efforts for high-quality product manufacturing.No officially confirmed patent or certification details, but continuous technological development efforts for high-quality product manufacturing.
- Technological capability for completely lubrication-free operation through the application of high-performance Carbon Bearings.Technological capability for completely lubrication-free operation through the application of high-performance Carbon Bearings.
- Securing product competitiveness through compact, lightweight, and automatic self-aligning design features.Securing product competitiveness through compact, lightweight, and automatic self-aligning design features.
Introduction
Key Products
Location
15-1 Daejeojungang-ro 348beon-gil, Gangseo-gu, Busan, South Korea
