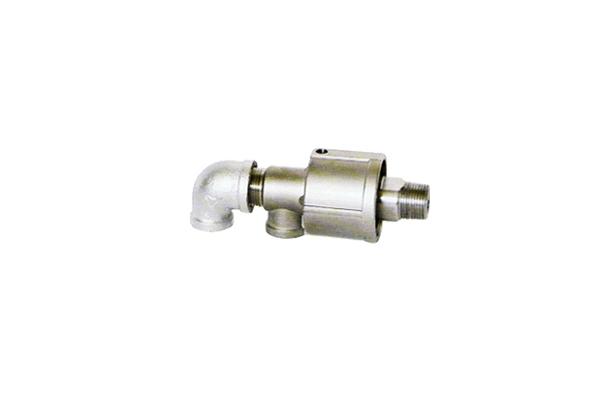

Product Name | Rotary Joint |
---|---|
Model | HR-2501, HR-2502 |
Series | Rotary Joint (R-2500 Series) |
Catalog |
A | B | C | D | E | F1 | F2 | K | L | L1 | L3 | L4 | L6 | L7 | N | X | |
15A | PT1/2 | PT1/8 | PT1/2 | PT3/8 | 56 | 28 | 28 | 16 | 150 | 139 | 122 | 90 | 31 | 18 | 12 | 21 |
20A | PT3/4 | PT1/4 | PT1/2 | PT3/8 | 61 | 30.5 | 28 | 14 | 160 | 149 | 131 | 96 | 32 | 19 | 16 | 26 |
25A | PT1 | PT3/8 | PT3/4 | PT1/2 | 74 | 37 | 33 | 15 | 178 | 165 | 143.5 | 103 | 34 | 20 | 20 | 32 |
