KOREA HOIST

KOREA HOIST

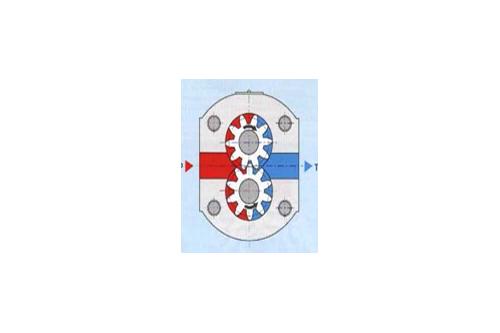

Air Motor (Gear Type (Clean Room))

Model

Series

Air Motor


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

Air Motor
- It can be used for wide-ranging purposes, usable instead of electric motor to minimize the or worker that may be caused by gas explosion or electric failure.

- Safety even in the case of overload

- Easy to control the speed and can be operated safely even at low speed

- Suitable for high temperature and high humidity area, and area exposed to dust and risk of

- Cap. 0.5~10kw



Specifications

Model OUTPUT RPM Torque
(N-m)
Air consumpfion
(m³/min)
Kw Hp
KAM-G020 2.07 2.81 2000 9.92 6.00

※ Air Pressure : 6bar



Dimensions



Model øA øB øC øD E F G H I
KAM-G020 190 210 160 18 50 4 170 190 4-ø12



Performance
