Description

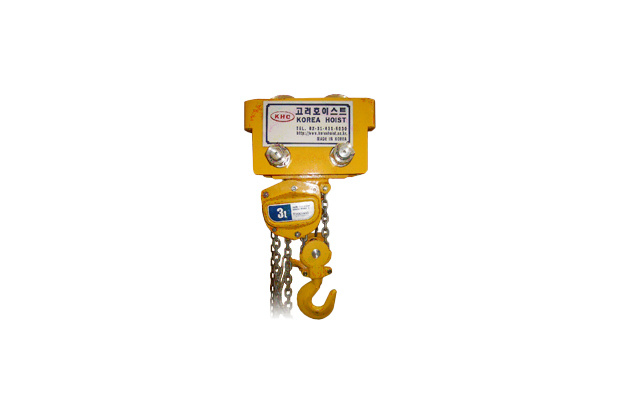

The Explosion proof type chain hoist is designed as the nonsparking type for all areas of wear, like hook, Road lane sprocket brake, chain guide, etc, suitable for facilities that require blast resistance, such as petro-chemical and gas storage facilities and others. Also, it is designed as the low head type convenient to use in places with low ceiling like the inside of ship, and provides convenience at affordable price
- Bronze Trolley Wheel
- Bronze Hook
- Spark proof Load Sheave
- Super Low Head Type
- Mechanical Brake
Specification Regular Type [KCB-RX]
| Model | Capacity (ton) |
Lift (m) |
Chain Falls |
H (mm) |
A (mm) |
B (mm) |
C (mm) |
Weight (Kg) |
|
KCB-005RX
|
0.5 | 2.5 | 1 | 312 | 140 | 131 | 31 | 9.2 |
|
KCB-010RX
|
1 | 2.5 | 1 | 360 | 156 | 151 | 33 | 12.3 |
|
KCB-015RX
|
1.5 | 2.5 | 1 | 385 | 176 | 151 | 38 | 14.2 |
|
KCB-020RX
|
2 | 2.5 | 1 | 430 | 223 | 183 | 40 | 22.3 |
|
KCB-030RX
|
3 | 3.0 | 2 | 490 | 223 | 151 | 44 | 22.7 |
|
KCB-050RX
|
5 | 3.0 | 2 | 675 | 252 | 183 | 39 | 41.7 |
|
KCB-100RX
|
10 | 3.0 | 4 | 880 | 380 | 183 | 64 | 70 |
|
KCB-200RX
|
20 | 3.0 | 8 | 1250 | 814 | 313 | 85 | 235 |
|
KCB-300RX
|
30 | 3.5 | 10 | 1450 | 834 | 437 | 85 | 492 |
|
KCB-400RX
|
40 | 3.5 | 14 | 1650 | 862 | 554 | 85 | 750 |
|
KCB-500RX
|
50 | 3.5 | 18 | 1960 | 936 | 727 | 85 | 930 |
