Konghwa Precision Tool

Konghwa Precision Tool

2F-Long Type

Model

Series

End Mills

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea

Description

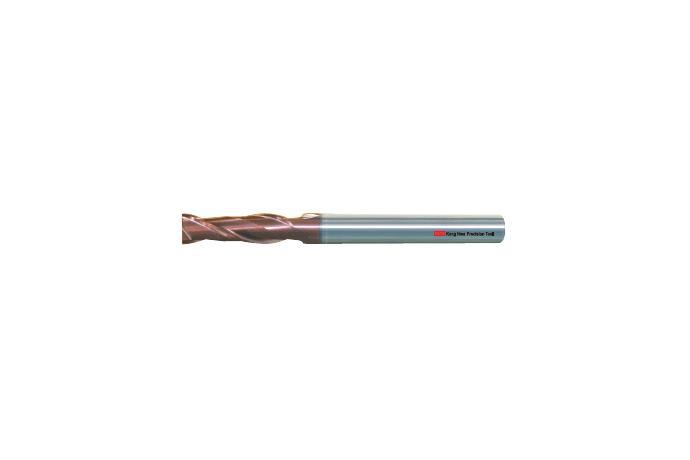

Konghwa Precision Tool 2F-Long Type SELA-2 Series

CODE NO Diameter Length of Cut Overall Length Shank Dia
ΦD L1 L Φd
SELA 2020 2.0 8 40 6
SELA 2031 3.0 12 50 6
SELA 2032 3.0 16 50 6
SELA 2041 4.0 15 53 6
SELA 2042 4.0 21 53 6
SELA 2051 5.0 20 63 6
SELA 2052 5.0 28 63 6
SELA 2061 6.0 20 63 6
SELA 2062 6.0 28 63 6
SELA 2081 8.0 25 78 8
SELA 2082 8.0 37 78 8
SELA 2101 10.0 30 78 10
SELA 2102 10.0 45 106 10
SELA 2121 12.0 40 78 12
SELA 2122 12.0 58 106 12
SELA 2140 14.0 40 106 14
SELA 2160 16.0 50 106 16
SELA 2180 18.0 50 106 18
SELA 2200 20.0 55 106 20

고객의 요구에 따라 TiN & TiCN-COATING 가능합니다.
