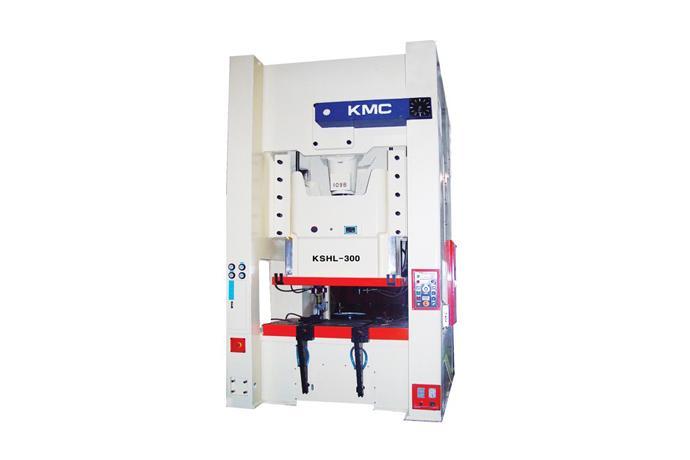

KSHL Series / Semi H-Type single crank link motion press

Capacity(Ton) 110 ~ 500
SEMI-H type press with a strong frame structure in front of C-frame cracks were complementary phenomena. Maintaining high accuracy.

- HIGHLY EFFICIENT WET TYPE CLUTCH BRAKE

- HYDRAULIC OVERLOAD PROTECTOR DEVICE

- SLIDE ADJUSTMENT DEVICE

- CIRCULATION TYPE AUTOMATIC OIL LUBRICATING SYSTEM

- MANUAL GREASE PUMP DEVICE

- 6 PHASES STRUCTURE

- EXTEND DURABILITY OF MOLD

- PRODUCE WITH HIGH PRECISION AND HIGH QUALITY

- SUITABLE FOR PRECISE BLANKING, PIERCING,  AND DRAWING

- PHOTOELECTRIC SAFETY DEVICE

- AIR EJECTOR

- FREE SET COUNTER



Standard Specifications

SpeciflcarionUnitKSHL-110KSHL-150KSHL-200KSHL-250KSHL-300KSHL-400KSHL-500
Capacityton110150200250300400500
Limit of Capacitymm7777777
Strokemm180200250250300350350
Number of Strokespm50454035303030
Die Heightmm410480500550600600700
Adjustment of slidemm100100120120150150150
Area of slidemm1000x5501150x6001300x6501400x7501500x8001650x10001850x1100
Area of Bolstermm1100x6801250x7601400x8501600x9201700x10001800x11002000x1200
Working heightmm900900900950110011001150
Main Motorkwxp11x415x419x422x430x437x445x4
Die Cushion
Capacityton8101214202020
Strokemm70100120130150150150
Pad Areamm420x300420x300420x420520x420550x475800x500800x600
Air PressureKg/cm²5555555




Product Information

Features

- Equipped With Wet Type clutch and brake system

- Good Durability for long time continuous working

- Driving mechanism Link Motion offers good forming by low speed at bottom dead center

- Better workability for precision products





KSL 링크모션의 특징

1.가공능력
하사점 상 높은 위치에서의 허용능력은 높고 깊은 교축가공에 이용된다.

2.가공속도
링크의 기구를 이용해 가공부분의 속도가 느리게 작동이 된다.

3.제품의 성형성
교축 속도가 느리고 속도의 변동율이 적어 제품의 성형에 유리하다.

4.제품의 생산성
저속 가공, 빠른 상승속도에 생산 속도를 올릴수 있다. 자동화 작업시 상승속도에 따른 시간의 제약을 받는다.

5.기계의 진동
가공이 될때(타발 시) 속도가 느려지므로 블랭킹 등의 소음및 진동이 적은 편이다.


Selection

1. V/S MOTOR

2. DIE CUSHION

3. ANTI-VIBRATION UNIT

4. (Q.D.C) QUICK DIE CHANGE

5. ELECTRONIC GONIOMETER

6. KNOCK OUT DEVICE

7. AUTO TRANSFER DEVICE

8. PLC SYSTEM( Programable Logic Controller )
