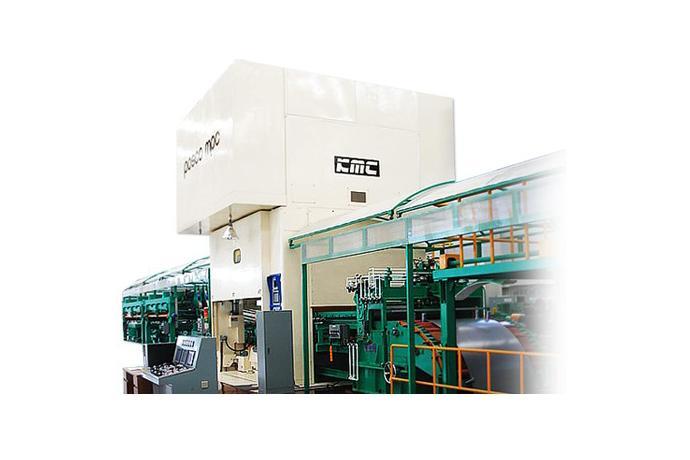

Product Name H Type Crankless Blanking Press
Model KCLB-400P2, KCLB-500P2, KCLB-600P2, KCLB-800P2, KCLB-1000P2, KCLB-1200P2, KCLB-400P4, KCLB-500P4, KCLB-600P4, KCLB-800P4, KCLB-1000P4, KCLB-1200P4
Series Mechanical Press
Catalog
Product Description

KCBL-P2/P4 Series / H-Type Crankless Blanking press

Capacity(Ton) 400 ~ 1200

◈ Strong H-type (Straight Side Frame) frame structure.
◈ A Strong structural design for only HIGH SPEED Blanking operation.
◈ Applied driving parts design only for BLANKING for HIGH SPEED BLANKING operation

- HYDRAULIC OVERLOAD PROTECTOR DEVICE

- SLIDE ADJUSTMENT DEVICE

- CIRCULATION TYPE AUTOMATIC OIL LUBRICATING SYSTEM

- 22POINT(4POINT) 8 PHASES STRUCTURE

- BROAD WORKING SPACE

- SUITABLE FOR HIGH SPEED BLANKING PROCESSING

- STRUCTURE OF RIGID FRAME CAN GUARANTEE DYNAMIC ACCURACY

- PHOTOELECTRIC SAFETY DEVICE

- AIR EJECTOR

- FREE SET COUNTER




Standard Specifications

SpeciflcarionUnitKCLB-400P2KCLB-500P2KCLB-600P2KCLB-800P2KCLB-1000P2KCLB-1200P2
Capacityton40050060080010001200
Limit of Capacitymm101010101010
Strokemm300300300300300300
Number of Strokespm808080806060
Die Heightmm100010001000120012001200
Adjustment of slidemm300300300300300300
Area of slidemm2400x14002400x14002600x15002800x15003000x16003000x1600
Area of Bolstermm2400x14002400x14002600x15002800x15003000x16003000x1600
Working heightmm650650650650650650
Main Motorkwxp110110150150185220
SpeciflcarionUnitKCLB-400P4KCLB-500P4KCLB-600P4KCLB-800P4KCLB-1000P4KCLB-1200P4
Capacityton40050060080010001200
Limit of Capacitymm101010101010
Strokemm500500500600600600
Number of Strokespm808080808080
Die Heightmm100010001000120012001200
Adjustment of slidemm300300300300300300
Area of slidemm3600x22004000x23004500x25004500x25005000x26005000x2600
Area of Bolstermm3600x22004000x23004500x25004500x25005000x26005000x2600
Working heightmm650650650650650650
Main Motorkwxp110110150150185220
