KMC PRESS

KMC PRESS

H Type Crankless Press

Model

Series

Mechanical Press


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

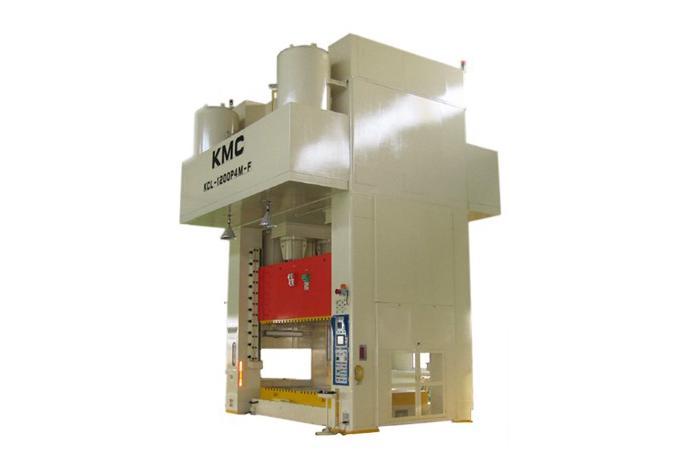

KCL-P4 Series / H-Type 4Point Crankless Press

Capacity(Ton) 200 ~ 1500
It is designed with H-shaped powerful frame structure and crankless drive system and built in resistant structure to shocks at driving parts that of the disadvantages of crank type.

- HIGHLY EFFICIENT WET TYPE CLUTCH BRAKE

- HYDRAULIC OVERLOAD PROTECTOR DEVICE

- SLIDE ADJUSTMENT DEVICE

- 2POINT 6 PHASES STRUCTURE

- 4POINT 4 PHASES STRUCTURE

- BROAD WORKING SPACE

- SUITABLE FOR VARIOUS SHEET MATAL PROCESSING SUCH AS BLANKING, PIERCING AND TAMPING,ETC.

- STRUCTURE OF RIGID FRAME CAN GUARANTEE DYNAMIC ACCURACY

- PHOTOELECTRIC SAFETY DEVICE

- AIR EJECTOR

- FREE SET COUNTER




Standard Specifications

SpeciflcarionUnitKCL-400P4KCL-500P4KCL-600P4KCL-800P4KCL-1000P4KCL-1200P4KCL-1500P4KCL-2000P4KCL-2400P4
Capacityton4004005006008001000120012001200
Limit of Capacitymm131313131313131313
Strokemm500500500600600600700800800
Number of Strokespm222222202018181818
Die Heightmm100010001000100012001200120012001200
Adjustment of slidemm400400400400500500500500500
Area of slidemm3200x18003200x18003200x18003000x18003200x18003400x18004000x20004500x25004700x2600
Area of Bolstermm3200x18003200x18003200x18003000x18003200x18003400x18004000x20004500x25004700x2600
Working heightmm650650650650650650750800800
Die Cushion
Capacityton507080100120150150200200
Strokemm200250250250250300300300300
Pad Areamm2400x12002400x12002400x12002400x12002700x15002700x1500
Air Pressurekg/cm2555555566




Product Information

Features

- Rigid driving system

- Compack design with stage covers

- Robot operation available

- Equipped with wet type clutch and brake system

- Used to thick plate working such as blanking, piercing, stamping etc.







Selection

1. V/S MOTOR

2. DIE CUSHION

3. ANTI-VIBRATION UNIT

4. QUICK DIE CHANGE

5. ELECTRONIC GONIOMETER

6. KNOCK OUT DEVICE

7. AUTO TRANSFER DEVICE

8. PLC SYSTEM( Programable Logic Controller )
