Product Name H Type Crankless Press
Model KCL-300P2, KCL-400P2, KCL-500P2, KCL-600P2, KCL-800P2, KCL-1000P2, KCL-1200P2, KCL-1500P2
Series Mechanical Press
Catalog
Product Description

KCL-P2 Series / H-Type 2Point Crankless Press

Capacity(Ton) 200 ~ 1500
It is designed with H-shaped powerful frame structure and crankless drive system and built in resistant structure to shocks at driving parts that of the disadvantages of crank type.

- HIGHLY EFFICIENT WET TYPE CLUTCH BRAKE

- HYDRAULIC OVERLOAD PROTECTOR DEVICE

- SLIDE ADJUSTMENT DEVICE

- 2POINT 6 PHASES STRUCTURE

- 2POINT 4 PHASES STRUCTURE

- BROAD WORKING SPACE

- SUITABLE FOR VARIOUS SHEET MATAL PROCESSING SUCH AS BLANKING, PIERCING AND TAMPING,ETC.

- STRUCTURE OF RIGID FRAME CAN GUARANTEE DYNAMIC ACCURACY

- PHOTOELECTRIC SAFETY DEVICE

- AIR EJECTOR

- FREE SET COUNTER




Standard Specifications

SpeciflcarionUnitKCL-300P2KCL-400P2KCL-500P2KCL-600P2KCL-800P2KCL-1000P2KCL-1200P2KCL-1500P2
Capacityton300400500600800100012001500
Limit of Capacitymm1313131313131313
Strokemm400500500500600600600700
Number of Strokespm2424242420202018
Die Heightmm900900100010001200120012001200
Adjustment of slidemm300400400400400500500500
Area of slidemm2300x13002400x14002400x14002600x16002800x16003000x16003000x16003000x1600
Area of Bolstermm2300x13002400x14002400x14002600x16002800x16003000x16003000x16003000x1600
Working heightmm650650650650650650600750
Die Cushion
Capacityton507080100120150150200
Strokemm200250250250250300300300
Pad Areamm1800x9001800x11501800x11502100x12002400x12002700x12002700x12002700x1200
Air Pressurekg/cm255555556




Product Information


Features

◈ Rigid driving system

◈ Compack design with stage covers

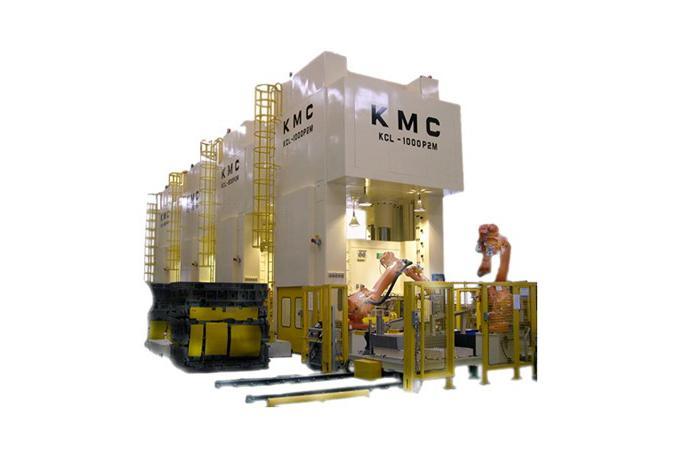

◈ Robot operation available

◈ Equipped with wet type clutch and brake system

◈ Used to thick plate working such as blanking, piercing, stamping etc.


Selection

1. V/S MOTOR

2. DIE CUSHION

3. ANTI-VIBRATION UNIT

4. QUICK DIE CHANGE

5. ELECTRONIC GONIOMETER

6. KNOCK OUT DEVICE

7. AUTO TRANSFER DEVICE

8. PLC SYSTEM( Programable Logic Controller )
