Product Name Semi-H Type Press
Model KHE-80, KHE-110, KHE-150, KHE-200
Series Mechanical Press
Catalog
Product Description

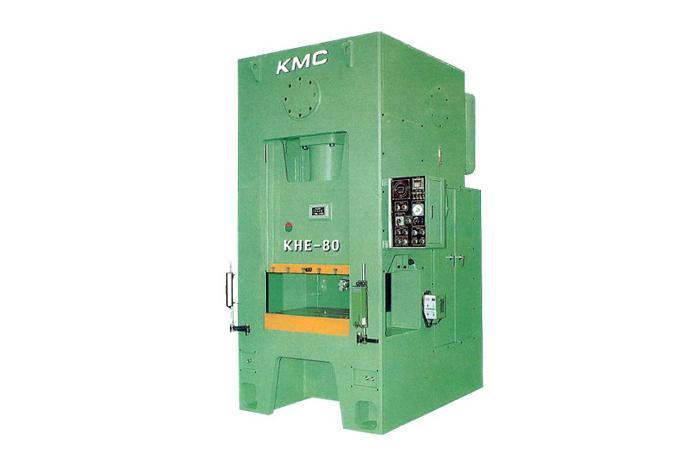

KHE Series / Semi-H Type Single Eccentric Press

Capacity(Ton) 80~ 200

- HIGHLY EFFICIENT WET TYPE CLUTCH BRAKE

- HYDRAULIC OVERLOAD PROTECTOR DEVICE

- SLIDE ADJUSTMENT DEVICE

- CIRCULATION TYPE AUTOMATIC OIL LUBRICATING SYSTEM

- 8 PHASES STRUCTURE

- STRUCTURE OF RIGID FRAME CAN GUARANTEE DYNAMIC ACCURACY

- PHOTOELECTRIC SAFETY DEVICE

- AIR EJECTOR

- FREE SET COUNTER

- SUITABLE FOR PRECISE BLANKING, PIERCING, STANMPING, ETC.




Standard Specifications

Specification
UnitKHE-80KHE-110KHE-150KHE-200
Capacityton80110150200
Limit of Capacitymm5555
Strokemm50607080
Number of Strokespm1201009080
Die Heightmm300350400450
Adjustment of slidemm80100100120
Area of slidemm750x450850x550950x6501050x750
Area of Bolstermm750x600850x600950x8001050x900
Working heightmm900900900900
Main Motorkwxp11x415x419x422x4
Die Cushion
Capacityton881012
Strokemm9070100120
Pad Areamm420x300420x300420x300420x420
Air PressureKg/cm²5555





Product Information

Features

- Equipped With Wet Type clutch and brake system
- Good Durability for long time continuous working
- Driving mechanism offer dynamic accuracy while working
- Good workability for sheet metal working such as blanking, piercing, stamping


Selection

1. V/S MOTOR
2. DIE CUSHION
3. ANTI-VIBRATION UNIT
4. QUICK DIE CHANGE
5. ELECTRONIC GONIOMETER
6. KNOCK OUT DEVICE
7. AUTO TRANSFER DEVICE
8. PLC SYSTEM( Programable Logic Controller )
