KMC PRESS

KMC PRESS

C type Crank Press

Model

Series

Mechanical Press


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

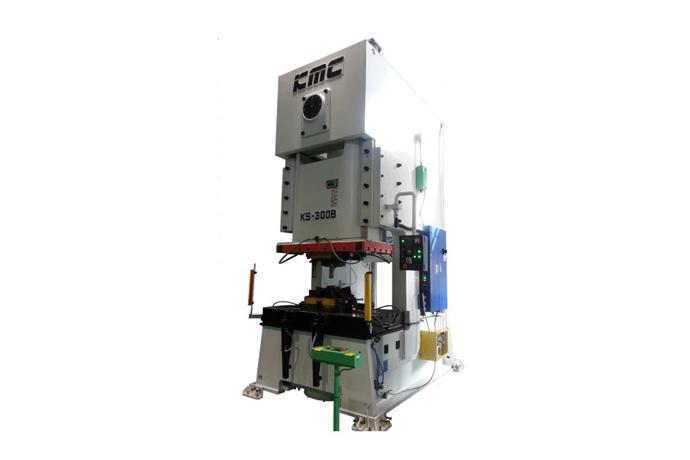

C Type Crank Press KS-B Series / C Type Single Crank press

Capacity(Ton) 110~ 300

- HIGHLY EFFICIENT WET TYPE CLUTCH BRAKE

- HYDRAULIC OVERLOAD PROTECTOR DEVICE

- SLIDE ADJUSTMENT DEVICE

- CIRCULATION TYPE AUTOMATIC OIL LUBRICATING SYSTEM

- MANUAL GREASE PUMP DEVICE

- 6 PHASES STRUCTURE

- PHOTOELECTRIC SAFETY DEVICE

- AIR EJECTOR

- FREE SET COUNTER

- SUITABLE FOR VARIOUS SHEET MATAL PROCESSING SUCH AS BLANKING, PIERCING AND TAMPING,ETC.



Standard Specifications

SpeciflcarionUnitKS-110BKS-150BKS-200BKS-250BKS-300B
Capacityton110150200250300
Limit of Capacitymm77777
Strokemm180200250250300
Number of Strokespm5045403530
Die Heightmm410480500550600
Adjustment of slidemm100100120120120
Area of slidemm1000x5501150x6001300x6501400x7501500x800
Area of Bolstermm1100x6801250x7601400x8501600x9201700x1000
Working heightmm9009009009501050
Main Motorkwxp11x415x419x422x430x4
Die Cushion
Capacityton810121420
Strokemm70100120130150
Pad Areamm420x300420x300420x420520x420550x475
Air PressureKg/cm²55555




Product Information

Features

- Equipped With Wet Type clutch and brake system
- Good Durability for long time continuous working
- Driving mechanism offer dynamic accuracy while working
- Good workability for sheet metal working such as blanking, piercing, stamping


Selection

1. V/S MOTOR
2. DIE CUSHION
3.  ANTI-VIBRATION UNIT
4. (Q.D.C) QUICK DIE CHANGE
5. ELECTRONIC GONIOMETER
6. KNOCK OUT DEVICE
7. AUTO TRANSFER DEVICE
8. PLC SYSTEM (Programable Logic Controller)
