Product Name Foot Switch
Model None
Series Foot Switch
Catalog
Product Description

Features

1. The 10A type micro-switch is included inside and guarantees the life when the interception speed in long
2. The selection is possible to the normal type and water-proof type.
3.



Proper form / Quality of the material

Division / NameCapacity of contactQuality of the materialWire, length
KG-FS10
Normal type
10A 205V a.cAluminum die-casting
Wire 0.75mm² x 2C
Length 1.5M
KG-FS10P
Water-proof type
10A 250V a.cAluminum die-casting
Wire 0.75mm² x 2C
Length 1.5M
KG-FS30
Normal type
10A 250V a.cPlastic body
Wire 0.75mm² x 2C
Length 1.5M


▶ Water-proof, KG-FS10P type
▶ Circuit diagrams







External form / Drawing

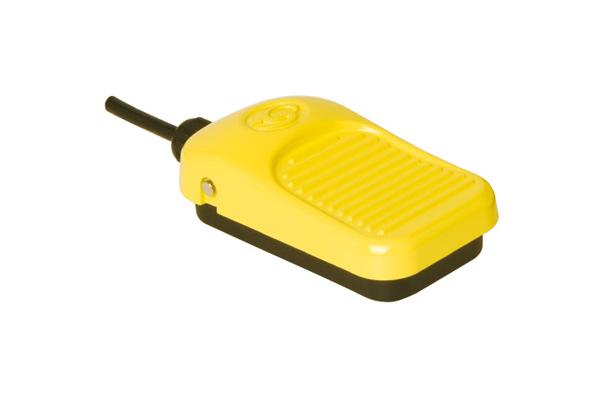

KG-FS10(Normal type)

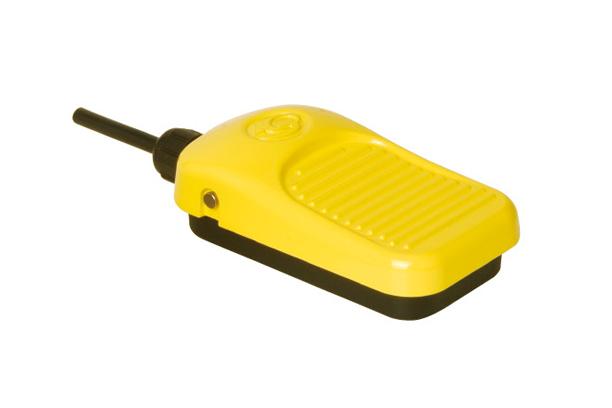

KG-FS10P(Water-proof type)

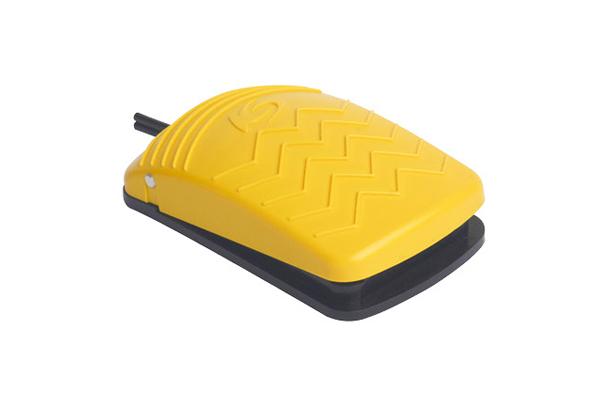

KG-FS30(Normal type)
