Product Name Plastic Terminal Box
Model None
Series Plastic Box
Catalog
Product Description

Features

1. Apply to industrial automation machines for relaying terminals by each line
2. Waterproof and dustproof structural design makes it easy to use in poor environments.
3. Application of flame retardant materials suitable for the certification conditions
4.


Performance

ListPlastic Terminal Box
RatingAC250V / 10A(0.75㎟~1.5㎟)
Insulation resistanceMin 100㏁
Dielectric2,500V a.c 50/60Hz 1min
Operation temperature-20℃ ~ +70℃
MaterialFlame retardant ABS V0



Name composition




Model Standard

ModelSize(mm)Weight(g)보호등급(IP)충격등급
KG-PPB0465 x 65 x 4587




IP65




IK07

KG-PPB0680 x 65 x 45107
KG-PPB10110 x 65 x 45147
KG-PPB15170 x 75 x 56273
KG-PPB20235 x 80 x 56400
KG-PPB30190 x 125 x 65519
KG-PPB40263 x 162 x 90891

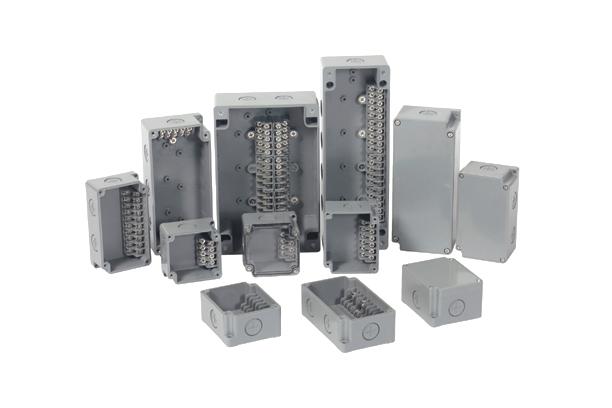

Appearance / Dimensions

KG-PPB04G / KG-PPB04C


KG-PPB06G /KG-PPB06C


KG-PPB10G / KG-PPB10C



KG-PPB15G / KG-PPB15C



KG-PPB20G / KG-PPB20C



KG-PPB30G / KG-PPB-30C



KG-PPB40G / KG-PPB40C




How to use

ModelBasic terminal block layout
Example of change of terminal layout
by user


KG-99B15G/C
170 X 75 X 56mm




KG-PPB20G/C
235 X 80 X 56mm





KG-PPB30G/C
190 X 125 X 65mm





KG-PPB40G/C
263 X 162 X 90mm



A separation strcture in each 5 pins the allow user to adjust the placement of terminal block.




5P Terminal block




Contact terminalCable GlandSub bolt

정격 절연 전압 : 250ㅍ
허용 전류 : 10A(0.75mm² ~1.5mm²)
러그 사이즈 :  M3.5

(PG13.5~PG21) Optional

커버 볼트의 조임 토오크는
14kgfㆍcm 이하로 할 것
