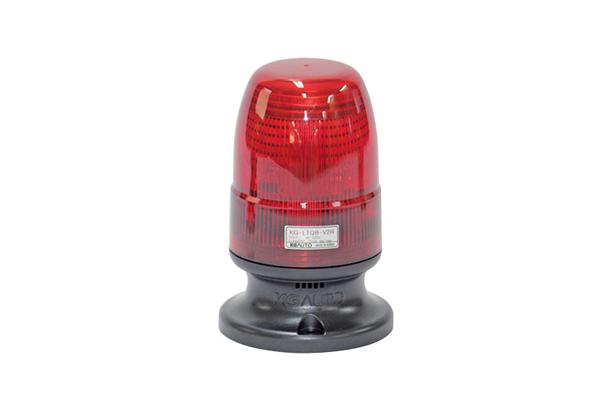

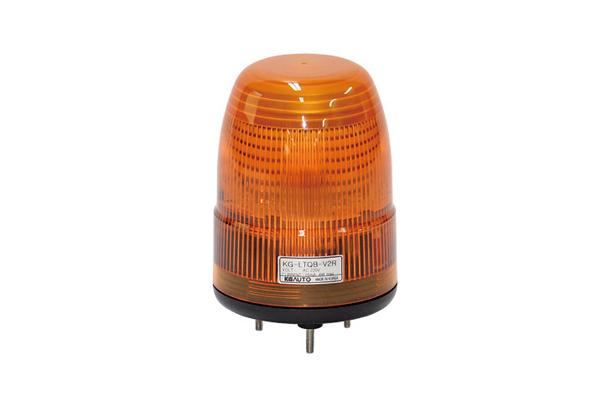

Product Name Ø90 LED TURN LIGHT
Model None
Series Turn Light
Catalog
Product Description

Features

1.Improve quality of machine, smart design.
2. CAP is a high intensity use of polycarbonate.
3. Rotation LED module, High durability.
4. Special plating treatment powerful intensity reflectors.



Name composition





Wiring method


Never connect this Buzzer wires to power sources. Two line connected directly or use an external contact.




External form / Drawing

KG-LTLV2Y



KG-LTQV2R




Function selector switch




Option

KG-TP Attaching optionKG-TL Attaching option







Current consumption

VoltageCurrent
DC24V70mA 2W
AC110V32mA 3.4W
AC220V

14mA 3.1W





Part

DivisionFormCodeExplain



P Type Stand




KG-TP



Attach the horizontal plane



L Type Stand




KG-TL



Attach the vertical plane



Stand




KG-TS



Replacing to get from
KG-TL type to KG-TQ type



Cap



KG-LTCR
KG-LTCY
KG-LTCG
KG-LTCA



Cap, R, Y, G, A
