Product Name Aluminum Control Box
Model None
Series Control Box
Catalog
Product Description

Features

1. There is die-casting aluminum body is made of light and durable.
2. Waterproof protection grade is IP-67
3. The body is produced by the combination of dark gray and beige.
4. The attachment hole size is non-porous, ∅22, ∅25, ∅30

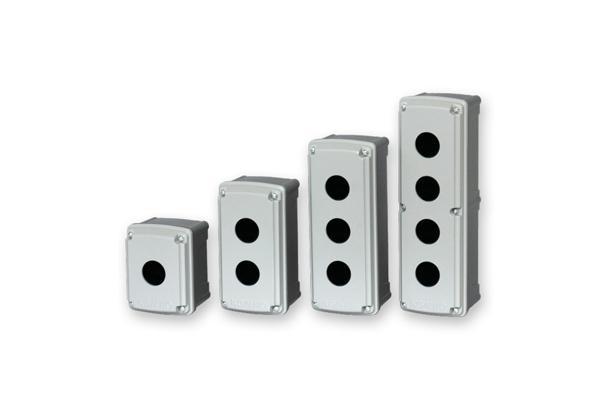

5. Aluminium Control box is produced from 1~4 hole.


Name composition




External form / Drawing



Front view



Side view

Rear view









Bottom view





무홀, ∅22, ∅25, ∅30 TYPE

ModelLTDC설치 나사 사양
AG-ACB00-1



108



-

홀 없음



69



M4 길이 25mm
머신 스크류

or

∅4 길이 25mm
탭핑 스크류

AG-ACB22-1
∅22.3±0.1
AG-ACB25-1
∅25.3±0.1
AG-ACB30-1
∅30.3±0.1
AG-ACB00-2



159



51

홀 없음



118

AG-ACB22-2
∅22.3±0.1
AG-ACB25-2
∅25.3±0.1
AG-ACB30-2

∅30.3±0.1


ModelLTDC설치 나사 사양
AG-ACB00-3



210



51

홀 없음



169



M4 길이 25mm
머신 스크류

or

∅4 길이 25mm
탭핑 스크류

AG-ACB22-3
∅22.3±0.1
AG-ACB25-3
∅25.3±0.1
AG-ACB30-3
∅30.3±0.1
AG-ACB00-4



261



51

홀 없음



220

AG-ACB22-4
∅22.3±0.1
AG-ACB25-4
∅25.3±0.1
AG-ACB30-4
∅30.3±0.1
