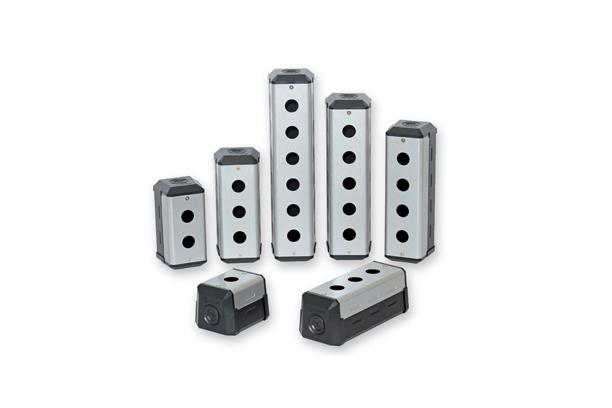

Product Name Control Box
Model None
Series Control Box
Catalog
Product Description

Features

1. The body material is made of cold-rolled steel and ABS.
2. The body is produced by the combination of black and silver.
3. Switch attachment hole diameter is ∅25, 30
4. Control box is produced from 1 hole ~ 6hole


Name Composition




External form / Drawing



Front view



Side view

Rear view






Bottom view





∅25, 30 TYPE (단위:mm)

ModelLTDCP
KG-CB25-1

114

51

∅25.3±0.13415.5
KG-CB30-1∅30.3±0.1
KG-CB25-116551∅25.3±0.18541
KG-CB30-2∅30.3±0.1
KG-CB25-321651∅25.3±0.113666.5
KG-CB30-3∅30.3±0.1

ModelLTDCP
KG-CB25-426751∅25.3±0.118792
KG-CB30-4∅30.3±0.1
KG-CB25-531851∅25.3±0.1238117.5
KG-CB30-5∅30.3±0.1
KG-CB25-636951∅25.3±0.1289143
KG-CB30-6∅30.3±0.1
