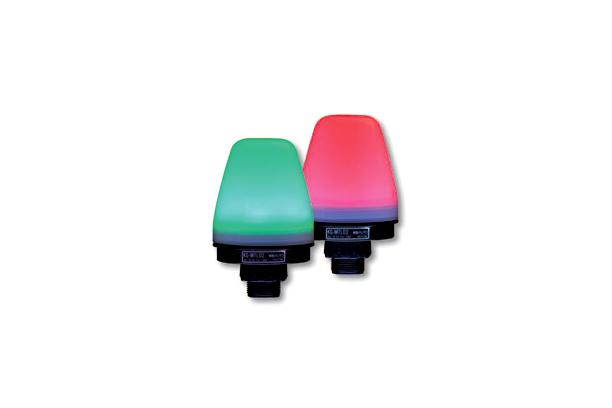

LED Multi 7 Color Sign Lamp

Model

Series

LED Sign Tower


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Features

1. Designed with small dome shape
2. Apply diffused lens cover
3. implement basic 3 color and combination 7 colors
4. Specific modes to be selected by internal dip switch depending on installation environment



Performance

DivisionLED Multi 7 Color Signal Lamp
ModelKG-MTL
FunctionLight, Flash
Flashing time60~70 time / min
Power supply voltage12/24V DC, 220V AC (50/60Hz)
Temp-20℃~70℃
Humidity35% ~ 85% R.H.
LENS MaterialPolycarbonate(PC)
소비전류AC  Type : 0.2A (max.) DC Type : 58mA (max.)
ColorRed, Green, Blue, Yellow, Sky blue, Purple, white
Degree of protectionRain-proof structure(When applying cable ground on the back)





Name composition


Appearance / Dimensions




Panel cutout



Connection diagram

NPN 구동타입




PNP 구동타입



접점 구동타입



1. Never connect the lamp wire, the light or the flashing wire together, failure to do so will result in damage to the circuit.
2. DC power source is connected regardless of polarity in contact drive
3. If using the internal DIP switch, connect the only power line please.


색상 조합 방법

LED ColorLightFlicker
REDRED + SKYRED + PINK
GRNGRN + SKYGRN + PINK
BLUBLU + SKYBLU + PINK
YELRED + GRN + SKYRED + GRN + PINK
SKY BLUGRN + BLU + SKYGRN + BLU + PINK
PURRED + BLU + SKYRED + BLU +PINK
WHTRED + GRN + BLU + SKYRED + GRN + BLU + PINK



내부 DIP스위치 사용시 설정 방법

To simplify wiring connection by using external contact(relay), you can open the lens cove and use the internal dip switch settings as below.





Safety information

Danger
1. Be sure to turn off power before connecting wires or changing LED Kit, it can cause electric shock.

Warring
1. Please check for the correct connecting wire before installing it. Incorrect wiring will cause a break down of product.
2. Please check for the correct voltage, Over voltage will cause by malfunction of product.

Caution
1. This product is only suitable for indoor use.
2. Applying a strong shock on the out side of product may cause a break down.
3. Please refer to the "wiring diagram" when you wire the product.
4. When mounting(dismounting) the product, please conduct operations after turning off the power of the main unit.
5. Please choose place that has sufficient strength and vibration.
6. Please be cautions that contact with chemical such as thinner or benzene can cause of deformation of the product or color of change.
7. The contents of this manual may be changed without prior notification.
