Product Name LED Multi 5 Color Sign Tower
Model None
Series LED Sign Tower
Catalog
Product Description

Feature

1. Save space by implementing 5 colors in 1 product.
2. Lenses for maximum light diffusion as wrinkles.
3. Located at the bottom of the buzzer and the sound can be controlled volume with knob.
4. Shock-resistant polycarbonate material reinforces the reliability by applying the lens.
5. Supports contact output anse transistor output(NPN/PNP).
6. Ø60 columnar structure of the round geometry


Performance

DivisionLED Multi 5 Color Sign Tower
ModelKG-MSFKG-MSFB
FunctionLight, FlashLight, Flash & Buzzer
Volume
90dB(30cm)/85dB(1m)
Flashing time60~70 time / min
Power supply voltage12/24V DC, 110/220V AC (50/60Hz)
Temp-5℃ ~50℃
Humidity35% ~ 85% R.H.
Agle360℃
LENS MaterialPloycarbonate(PC)
PIPE MaterialAluminum
ColorRed, Green, Blue, Yellow, White
Degree of protectionIPXO Indoor


Current consumption

Color24V DC110V AC220V AC
Red58.6mA21.2mA14.2mA
Green54.8mA21.2mA14.3mA
Blue56.6mA21.3mA15.4mA
Yellow86.0mA32.4mA21.1mA
White116.1mA45.3mA26.7mA



Name composition

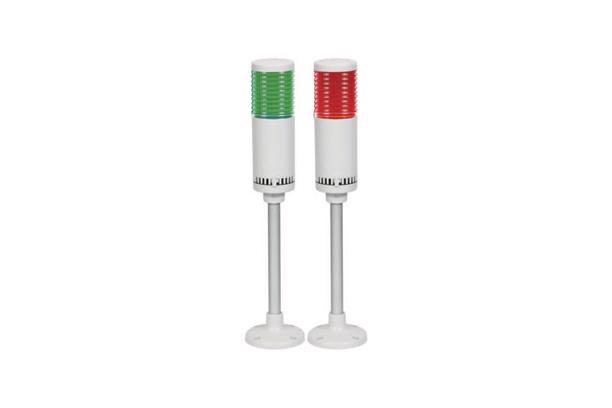

∅60 LED Light / Flash / Buzzer 5 Color Sign Tower



Appearance / Dimensions



Panel Cutout



Connection diagram

Circuit diagram


NPN  Transistor drive



PNP Transistor drive





Safety information

1. Please be sure to connect the wiring according to the connection diagram.
2. If flashing, lighting AC specification, never connect the power line(black,orange) and flashing(brown),
     lighting (gray) together. The circuit will be damaged.
3. DC Power source is connected regardless of polarity in contact drive.
4. If the buzzer(PUR) is connected to a flashing line(BRN) or a lighting line(SKY) and the lamp line of the desired color in connected,
    the buzzer and lamp may be implemented simultaneously.


Part

DivisionFormCodeExplain


P Type Stand



KG-SP (White)
KG-SPB (black)


Attach the horizontal plane


L Type Stand



KG-SL


Attach the vertical plane



Fordable Type




KG-SF (Black)



Fordable plate


Stand



KG-S (White)
KG-SB (Black)


Applies when using the
P type stand
