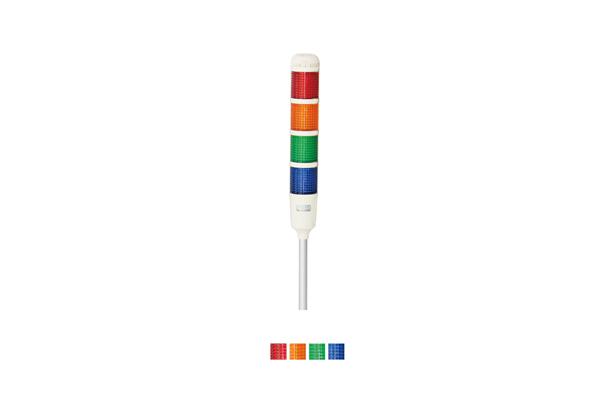

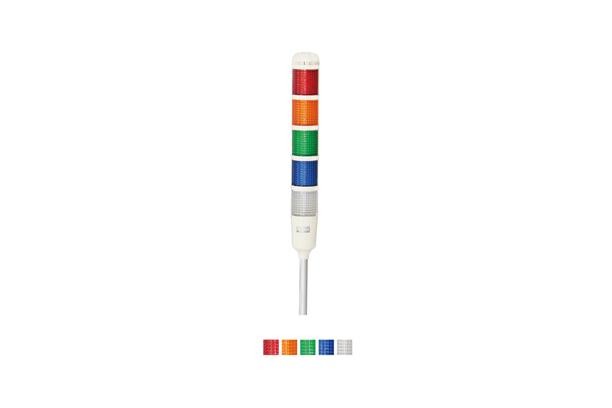

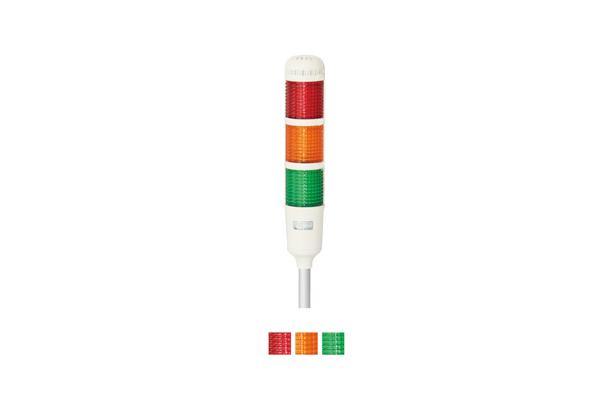

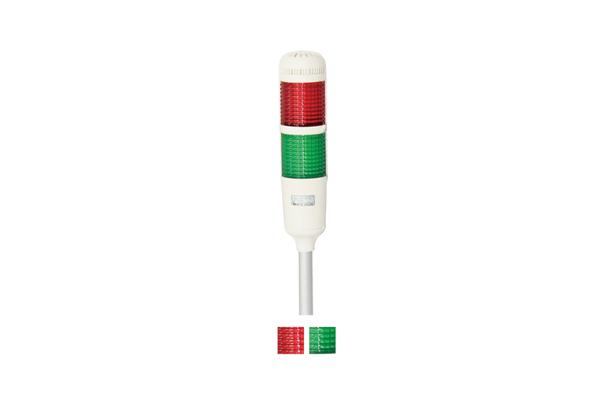

∅57 LED Sign Tower

Model

Series

LED Sign Tower


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Features

1. ∅57 columnar structure of the round geometry.
2. New concept design, visibility enhancement.
3. Lenses for maximum light diffusion as wrinkles.
4. Located at the top of the buzzer and the sound can be proliferated round structure with a maximum of sound  without any loss (min, 90dB)
5. Shock-resistant polycarbonate material reinforces the reliability by applying the lens.
6. Unique LED light BA15S standards by applying a light bulb can be used for compatibility.
7.


Performance


LED Lamp


Incandescent Lamp






Name composition

∅57 LED Lamp


∅57 Incandescent Lamp



External form / Drawing


LED / Incandescent Lamp Stack 1



LED / Incandescent Lamp Stack 2




LED / Incandescent Lamp Stack 3




LED / Incandescent Lamp Stack 4




LED / Incandescent Lamp Stack 5





Current consumption

LED Lamp (BA15S)24V DC110 AC220V AC
Lamp Capacity1.2W1.32W2.2W



 Number of stack

1단50mA12mA10mA
2단85mA14mA15mA
3단120mA16mA20mA
4단155mA18mA25mA
5단190mA

20mA

30mA

Incandescent Lamp (BA15S)12VDC24V DC110V AC220V AC
Lamp Capacity5W5W5W
5W



 Number of stack

1단0.42A0.21A0.07A0.04A
2단0.84A0.42A0.14A0.08A
3단1.26A0.63A0.2A0.11A
4단1.68A0.84A0.27A0.14A
5단2.1A

1.05A

0.33A0.17A




Safety information

Danger
1. Be sure to turn off power before connecting wires or changing LED Kit, it can cause electric shock.

Warring
1. Please check for the correct connecting wire before installing it. Incorrect wiring will cause a break down of product.
2. Please check for the correct voltage, Over voltage will cause by malfunction of product.

Caution
1. This product is only suitable for indoor use.
2. Applying a strong shock on the out side of product may cause a break down.
3. Please refer to the "wiring diagram" when you wire the product.
4. When mounting(dismounting) the product, please conduct operations after turning off the power of the main unit.
5. Please choose place that has sufficient strength and vibration.
6. Please be cautions that contact with chemical such as thinner or benzene can cause of deformation of the product or color of change.
7. The contents of this manual may be changed without prior notification.



Connection diagram

1. Be sure to observe final period in accordance with the connection diagram of each specifications.
2. If flashing, lighting AC specification. never connect the power line(black, orange) and flashing(pink),
     lighting(sky blue) line don't get together.
3. When you connect a buzzer for flashing line (pink) and lighting line(sky blue) You can choose a broken sound and continuous sound.
    If you need to connect the line with the desires. Lamp and Buzzer at the same time.



Panel cutout



Part

DivisionFormCodeExplain


P Type Stand



KG-SP (Beige)
KG-SPB (black)


Attach the horizontal plane


L Type Stand



KG-SL


Attach the vertical plane


Stand



KG-S (Beige)
KG-SB (Black)


Applies when using the
P type stand



Cap



KG-SCR
KG-SCY
KG-SCG
KG-SCW



Cap R, Y, G, B, W



LED Lamp



KG-SD2LR
G, B, W&Y
KG-SV2LR
G, B, W&Y



LED lamp R, G, B, W&Y




Incandescent Lamp




KG-T12
KG-T24
KG-V1
KG-V2




Applies when suing
Incandescent





Inquiry
