Product Name Limit Switch
Model None
Series Limit / Small Limit
Catalog
Product Description

Classification


Features
1. Limit switch becomes to make the aluminum die-casting in the case which is strong it maintains a long life in shock outside.
2. Inner switch is composed of 2 stage, it makes with strong quality of material
3. heat-proof, oil- proof, dust-proof structure.
4. Protected structure : IP67
5.


Use
1. Location decision of various machine.
2. Passage confirmation and directional control of cargo work transportation machine.
3. The other general industrial machine.


Specification


Quotation


Quotation of KC





Name composition



External form / Drawing

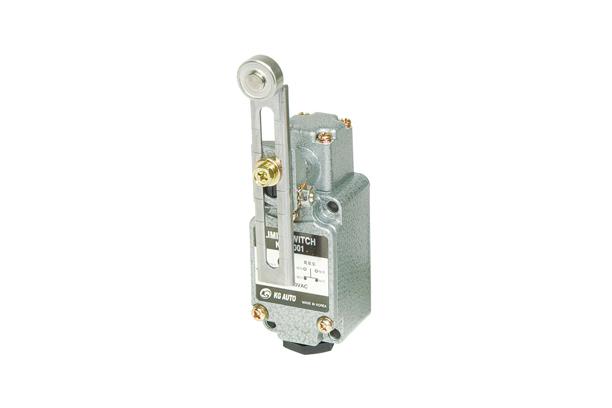

Variable roller lever
KG-L001 / KG-L201

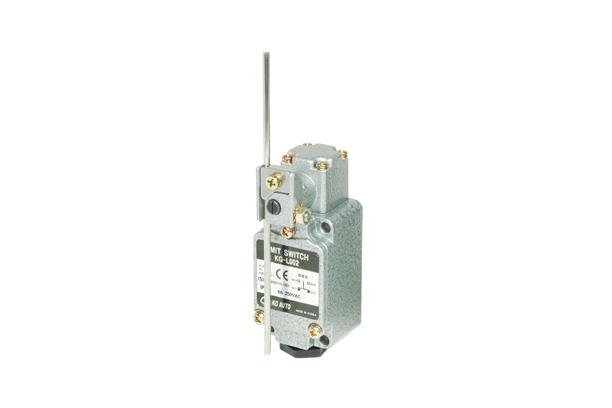

Variable rod lever
KG-L002 / KG-L202

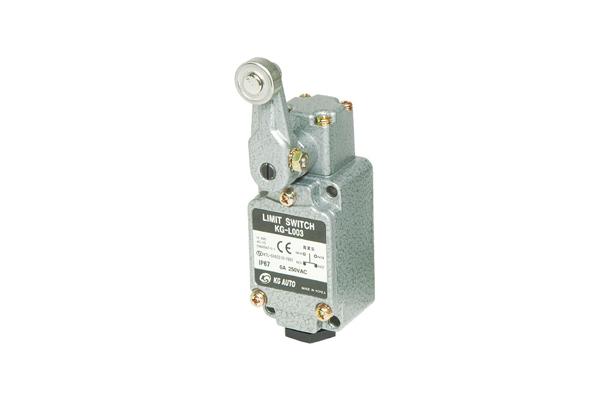

Roller lever
KG-L003 / KG-L203

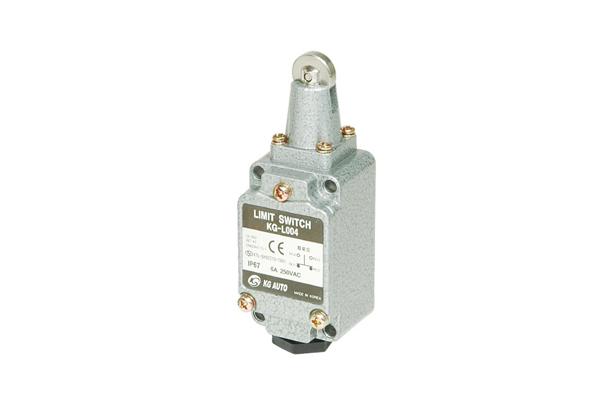

Roller plunger
KG-L004 / KG-L204

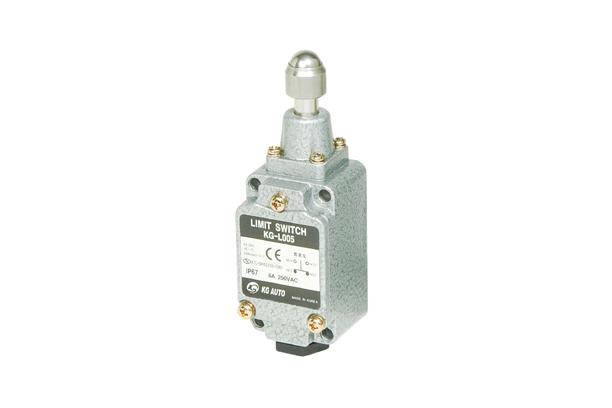

Ball plunger
KG-L005 / KG-L205

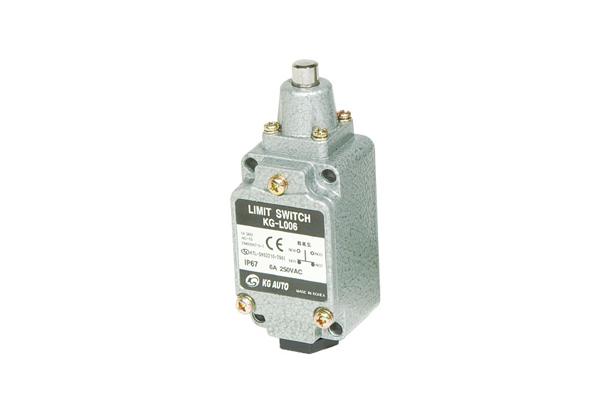

Push plunger
KG-L006 / KG-L206

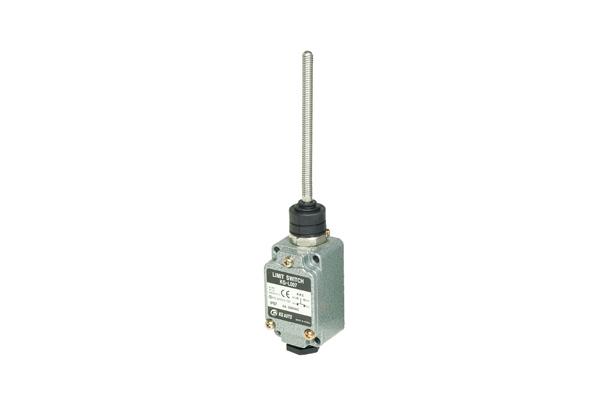

Spring wire
KG-L007 / KG-L207


KG-LS100


기본형


NC Lamp ON


No Lamp ON




External form of lever

KG-LE100


KG-LE200


KG-LE300





Attention
- Please cares to not force or shock to the actuator so that the operating body of the switch.
- In case of cam, dog unsettled operation or machine life will be decrease. Also becomes the cause defective occurrence.
- When working, to refer to the lower part picture.



User Guide

NameExplanationFigure caption




KG-L001
KG-L002
KG-L003




Actuator attachment location changes

There is possibility of setting actuator with 360˚ omnidirectionals





KG-L001
KG-L002
KG-L003
KG-L004




Head location changes

Will release screw of the head and there is a possibility which will set even in four kind of location






KG-L003



Attaches roller lever in opposition and the roller will be able to attach in internal

In order for to perpendicular the operation to be completed from within scope of 60˚ to be set





KG-L001
KG-L002




Will be able to control rod and lever length

Will release a six-angle bolt and will be able to control rod and lever length
