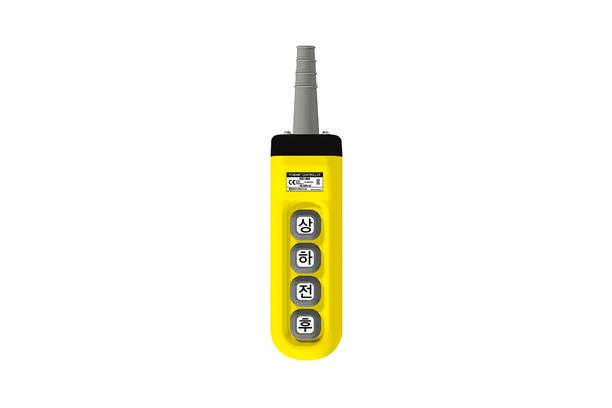

Product Name Hoist switch
Model None
Series Hoist switch
Catalog
Product Description

Features

1. Water-proof structure and outer block case was designed as light and strong by ABS quality of the material that is strong in impact.
2. Contact part is 1stage(1a-1a), 1stage(2a-2a) basis be. 2stage(2a-2a) block can use at electric motor speed controls.
3. Preparing various button plates. Use is convenient according to usage.
4.


Name composition


Quotation



Specification



Contact part composition & Dimension

NameContact blockBlock compositionRatingDimensions
KG-HE100
(1b)



6A 250V


KG-HA100
(1a-1b, 1stage)



6A 250V


KG-HC100
(2a-2a, 2stage)



6A 250V


KG-HT100
(2a-2a, 1stage_



6A 250V




Push button with international symbols

Korean


English


Symbol Marks



Dimensions

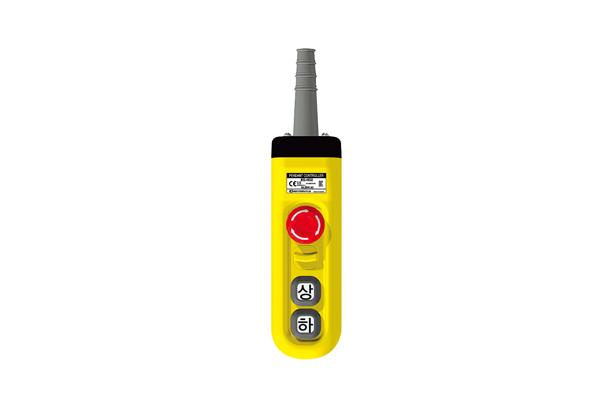

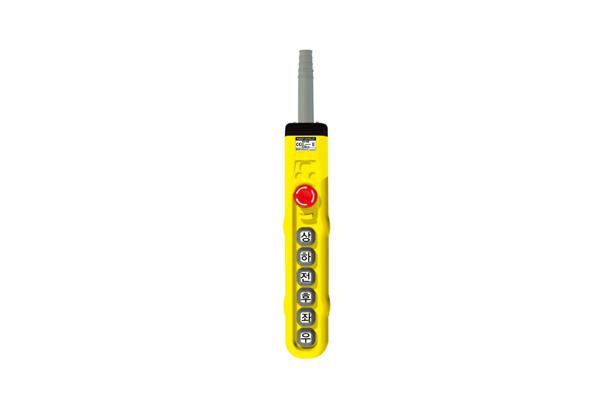

Emergency type

DivisionABCDEF

H02EA
(4 hole)

287.7206.966.0-53.067.5
H04EAA
(6 hole)
404.7294.966.072.053.067.5
H06EAA
(8 hole)
464.7354.966.072.053.067.5

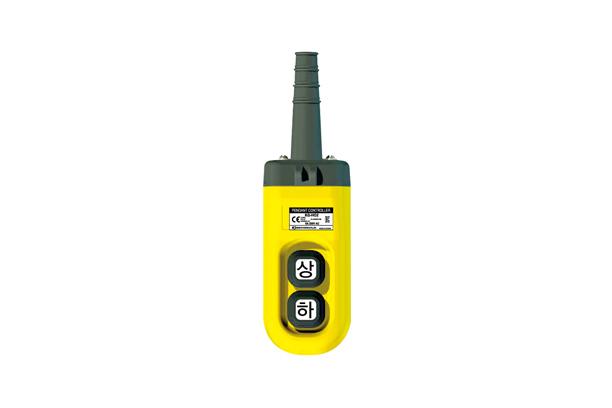

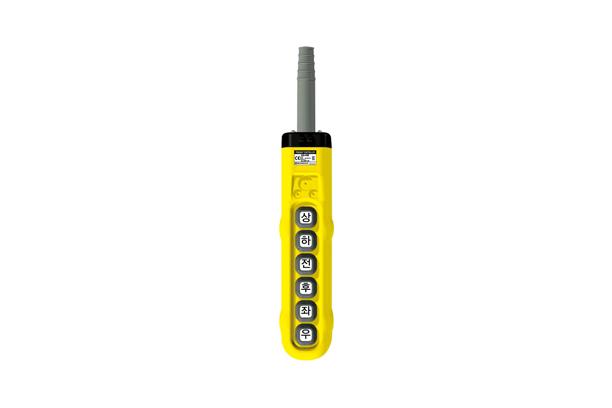

General Type

DivisionABCDEF
H02A
(2 hole)
227.7146.966.0-53.067.9
H04AA
(4 hole)
287.7206.966.0
-53.0
67.9
H06AAA
(6 hole)
404.7294.966.0
72.053.0
67.9
H08AAAA
(8 hole)
464.7354.966.0
72.053.0
67.9



Attention
-Please do not use force applied to the cable, to reduce the risk of disconnection.
- When wiring do not remain impurities, terminal bolt be tightened.
- Be careful to avoid an excessive impact is applied.
- Be careful with unreasonable behavior has shorten with lifespan.


Order forms



Special order forms
