Volt indicator
Model Name
-
Series
Volt indicator
Data
-
Manufacturer information
provider logo
KG AUTOIndustrial automatic control machine manufacturer, Control switch, Limit switch, Hoist switch and more
Problem with product info?
Update request
Manufacturer
KG AUTO
Brand
-
SKU
122520
Product Name
Volt indicator
Model Name
-
Size
-
Weight
-
Product Details

Features

1. Using high-intensity 7 segment LED with good visibility
2. Designed Circular, Flush Type Sleek And Slime size
3. Attaching to ∅22, 30, 66 by using integral nut connection method for fast installation
4. Apply a back light function to check the display in the dark (∅66)


Performance

ListVolt Indicator Series
RatingAC 50~500V (50~60Hz) / DC 5~30V
A/D conversion methodIntegral method
Sampling period500ms
Response speed500ms
External controlIndicated value by contact input
Measurement & DisplayEffective value display by half-wave rectification
Display7 segment LED
Ambient temperature-10℃ ~ 50℃
Ambient humidity45 ~ 85% RH
Vibration resistance10~50Hz double amplitude X, Y, Z for 2hours
Shock Withstand300㎨, each 3 times for X, Y, Z 6directions
AccuracyAC: max. ±2%, DC : max.±1.5%
Insulation resistanceMin. 100㏁ at 500V d.c
Dielectric strength1,500V a.c 1min
Power consumptionMax. 2W
Protection degreeIP65 for front side


Name Composition




Appearance & Name / Drawing

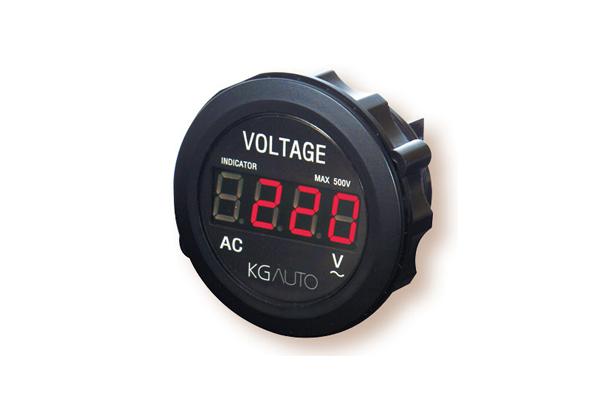

∅66 Plastic guide Silver & Black

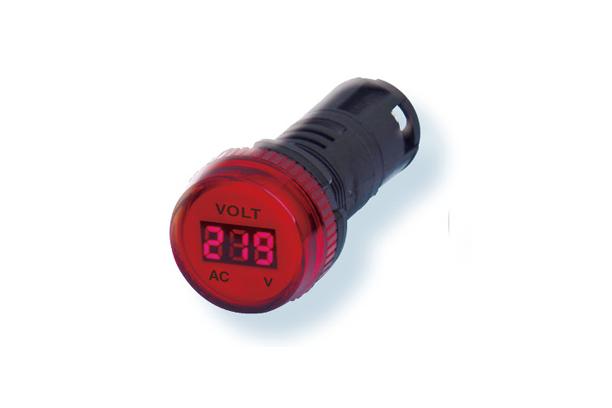

N-Type 2 : ∅22 (High-grade type) Aluminum guide

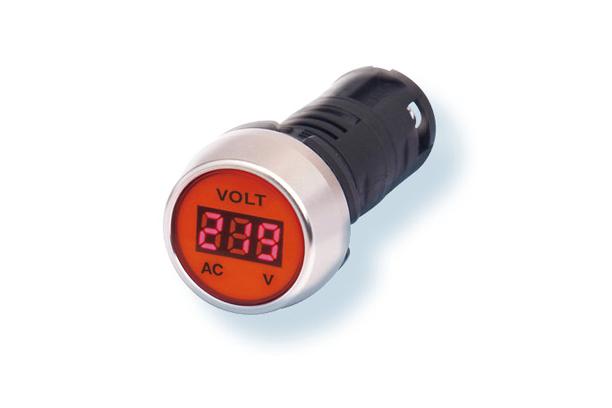

H-Type : ∅22 (High-grade type) aluminum guide

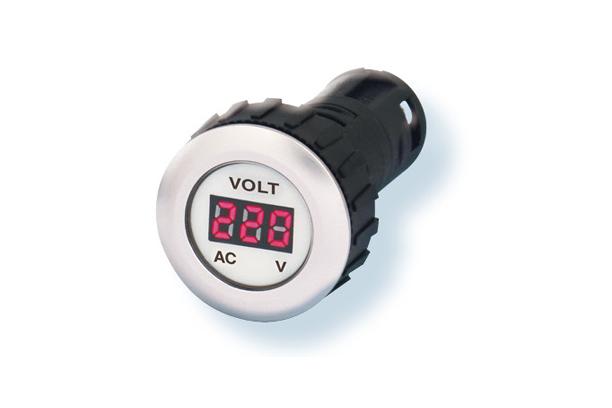

L-Type : ∅30 (Luxury buried type) Aluminum guide




Appearance & Name / Drawing

※ This Product can be used in a constant voltage environment and may not function properly in a phase control environment such as TPR.



Connection diagram



Ateention

1. Connect wires after verifying the operational voltage and allowed current.
2. During Connection, set the screw fastening torque at below 5kgf.
3. If the measurement value exceeds the measuring range, the Find will be shown "---"
4. The measuring instruments such as this product are weak to noise.
     If abnormal voltage(more than 1kV) occurs caused by a Power Relay, Magnet Switch, High-frequency equipment,
     Reverse Electromotive Force, High-votage spark, and Lightning, use the line filter or the noise absorbing circuit in the exterior line.

Noise prevention by line filter


Noise prevention by varistor


5. Use the shield wire especially if the measuring input line is longer or a place with noise

Noise prevention by line filter


Noise prevention by varistor
