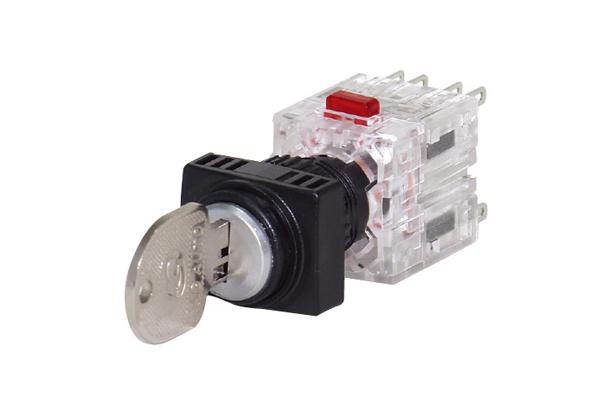

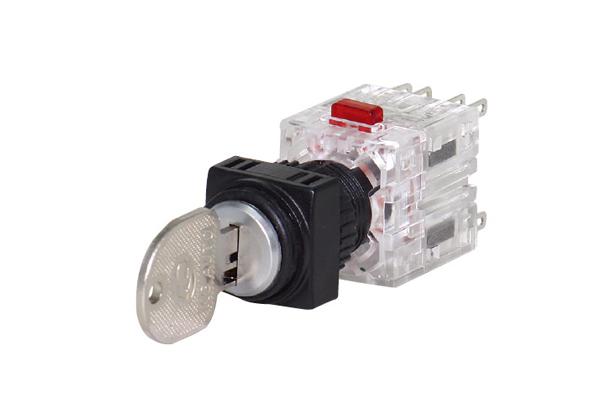

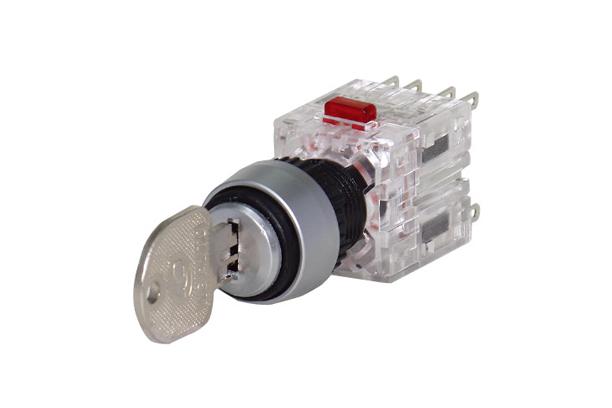

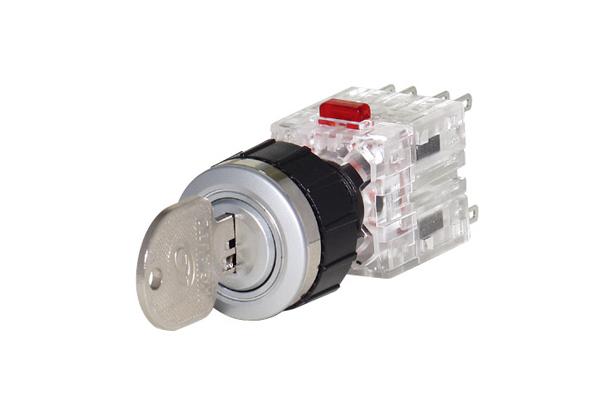

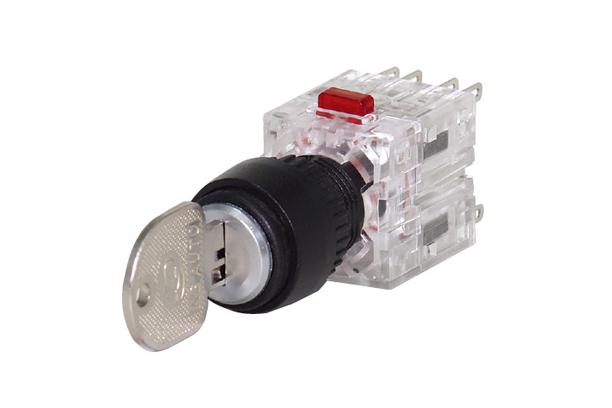

Product Name Key selector switch
Model None
Series KD Series
Catalog
Product Description

Features

1. Operating and contact part was planned in separation style
2. Attached hole ∅16, ∅22 The selection with is various it used
3. Slim type is being 2.5mm projections from panel. there is no jam from the side
4. Contact block was planned basic 1a1b
5. A light source was produced with the LED
6.
7. Protected structure : IP65


LED Lamp

Rated VoltageRated Current
12/24V d.c32mA
110/20V a.c7.5mA


Circuit diagrams




Performance




Name composition



∅16 Assembly order



Panel cutting size




User guide

∅16 Round, square type


∅16 Rectangular type


∅22 Luxury buried type


∅16, 22 Contacts terminal



Attention

-Panel cutting is above by a necessity to select
- Panel thickness 1~7mm
- Lamp terminal and terminal wiring not to be exchange it will have attention



KD S/W Symbol Mark


Features

1. When presenting date, such as the symbol that you want in the form as it is marking this possible
2. Symbol mark is making a computer laser engraving machine, laser engraving is part of burning technique is more efficient than traditional printing methods and keep a long life
3. Symbol mark is applied to the switch is a FA equipment, CD equipment, laser equipment, etc. can be applied to a wide of industrial site.


적용 모델 : KD-S,F TYPE


Symbol mark


Symbol mark

KD-S TYPE


KD-F TYPE






Parts

DivisionFormCodeExplain
Contactor unit


KD-10Contact block was planned basic 1a1b and the maximum 4a4b until there is a possibility of attaching
Fixing plate


KD-FOperating or contactor part attaching and remove is easy
Support block


KD-20Contactor part support block
∅16 Aluminum guide


KD-16Operation part ∅16 aluminum guide
∅22 Aluminum guide


KD-22Operation part ∅22 aluminum guide
Turn prevention ring


KD-28Operation part ∅16 turn prevention ring
Attaching tool


KD-40Use the attaching panel
Actuator Protect cover


KD-16G

∅16 Actuator Protect cover

Actuator Protect cover


KD-22QGActuator protect cover
