  • Justek

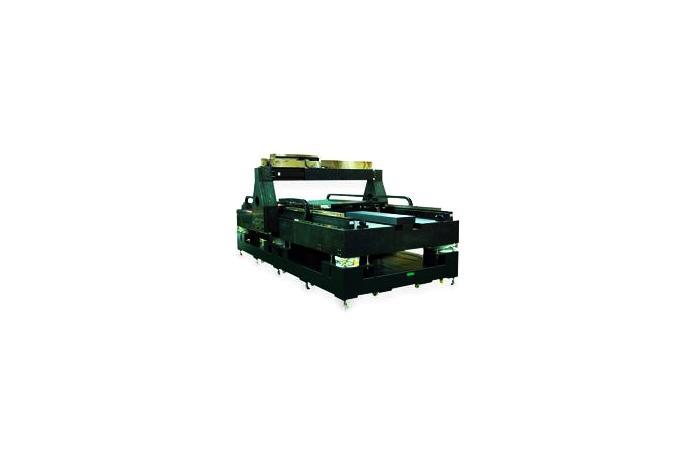

    Gen. 7.5 Air Bearing Stage
    Model
    -
    Series
    Motion Stages

    Product Description

    Specification

    axis

    X

    Y

    Work area

    3,100mm

    2,100mm

    Guide

    Air bearing

    LM bearing

    load mass

    400kg

    50kg

    Speed

    400mm/sec

    Acceleration

    1m/sec²

    Position accuracy(보정후)

    5㎛

    Repeatability

    ±1㎛

    Option
    Applications

    LCD vision inspection equipment etc.
