Justek

Justek

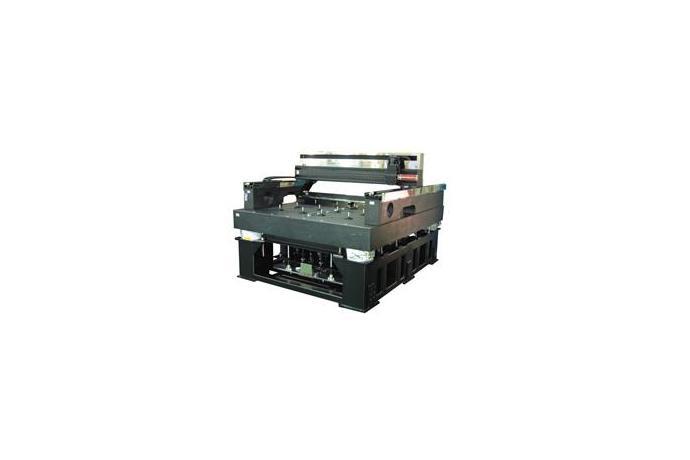

LM Guide Stage - Gen. 5.5 Gantry Stage

Model

Series

Motion Stages


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Description

- Stroke : 2,110mm×1,650mm
- Accuracy : 2㎛
- Repeatability :±1㎛
- Glass lifting & illumination axis(option)



Specification

Axis

X₁, X₂

Y

Work area

1,900mm

1,600mm

Guide

LM bearing

Load mass

30kg(Head)

Speed

500mm/sec

Acceleration

2m/sec²

Position accuracy (보정후)

2㎛

Repeatability

±1㎛

Option

Glass lifting & illumination axis

Applications

LCD thickness, height measurement equipment, etc.
