Justek

Justek

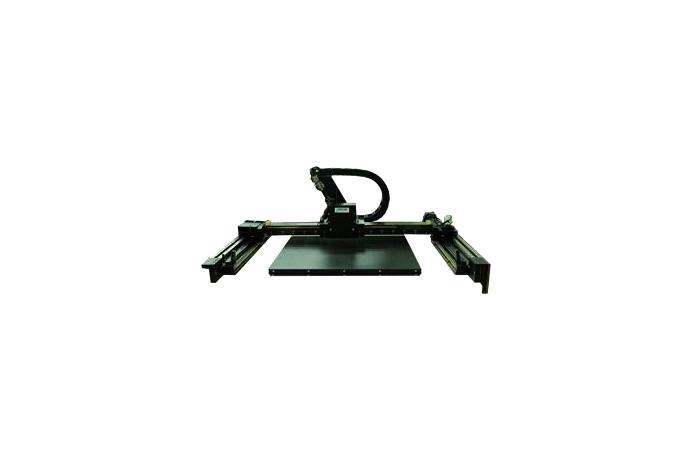

LM Guide Stage - Acu-Positioner Ⅲ

Model

Series

Motion Stages


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Specification

Basic Model

ACPⅢ 600×400

ACPⅢ(D) 600×400

Motor

Y axis

Single JTKL5139

Dual JTKL5139

X axis

JTKL3619

Work area

600×400

Driver

Direct PWM amplifier : JSMD-0xD

Servo driver compatible Field Bus (EtherCAT, MACRO, MechatroLink3) : JSMD-0xE

Voltage

Up to 340VDC

Encoder Type

Linear encoder

Resolving power

4.88nm ~ 1.0㎛

Speed

2m/sec

3m/sec

Acceleration

30m/sec² (no-load)

50m/sec² (no-load)

Moving mass

5kg

Total load mass

35kg (no-load)

Inquiry
