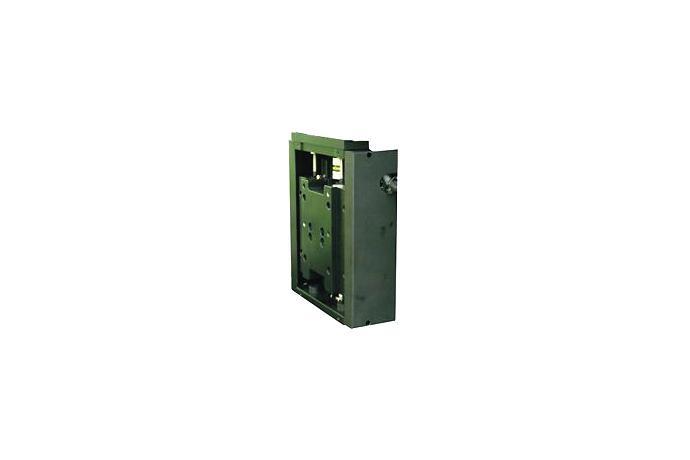

Vertical Precision Positioning Stages
Model Name
JTMZ10
Series
Linear Motors
Data
Linear Motors
Manufacturer information
provider logo
Justek

Linear motor, Stage, Servo driver, Rotary DD motor, Multi controller, High precision motion stag and more

Problem with product info?
Update request
Manufacturer
Justek
Product Type
Machine
Brand
-
SKU
55449
Product Name
Vertical Precision Positioning Stages
Model Name
JTMZ10, 20
Size
-
Weight
-
Product Details

Description

- Resolution : 0.1㎛ / 0.5㎛ / 1㎛
- Stroke : 10mm ~ 300mm
- Driven by either stepping motor or servo motor
- Precision positioning on the Z axis driven by a ball screw
- Minimal backlash and improved accuracy by use of a full closed-loop control of linear encoders (Optional)



Specification

Model

JTMZ10

JTMZ20

비 고

Performance Parameters

Units

Table Size

mm

128 x 105

208 x 133

Max St. 200mm

Stroke

mm

10 / 20

10/30/60/100

-

Motor

Nm

최대정지토크 0.24

최대정지토크 0.83

5상 Step

W

50W / 100W

100W / 200W / 400W

AC servo

Resolution *1

5/1/0.5/0.1/0.05

5/1/0.5/0.1/0.05

-

Ball Screw Lead

mm

2

2

-

Repeatability

±1 / ±0.5

±1 / ±0.5

With Linear
encoder

Accuracy

2

2

Repeatability

±2

±2

With Linear
encoder

Accuracy *2

4

5

Straitghtness

3

3

-

Flatness

4

5

-

Total Weight

kg

4

13.5

-

Load Capacity

kg

10

30

Vertical

Material

-

Aluminum

Aluminum

Black Anodizing

    *1 : Stroke 20mm   *2 : Stroke 30mm
