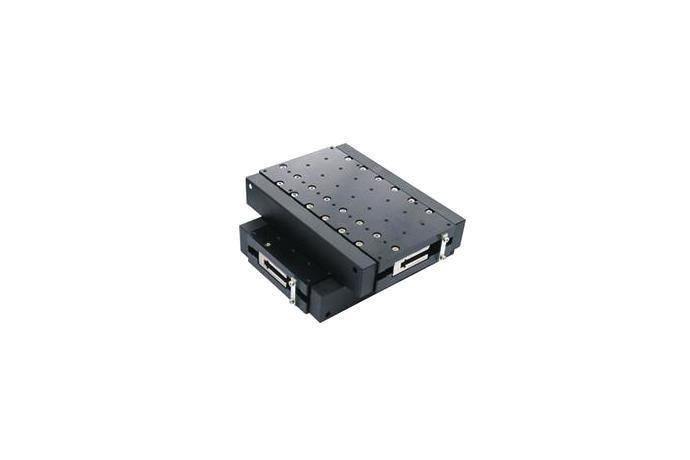

Mini Stages(JSAH)
Model Name
JSAH20
Series
Linear Motors
Data
Mini Stage
Manufacturer information
provider logo
Justek

Linear motor, Stage, Servo driver, Rotary DD motor, Multi controller, High precision motion stag and more

Problem with product info?
Update request
Manufacturer
Justek
Product Type
Machine
Brand
-
SKU
55448
Product Name
Mini Stages(JSAH)
Model Name
JSAH20, JSAH40, JSAH60, JSAH80, JSAH100, JSAH120
Size
-
Weight
-
Product Details

Description

- Resolution : 0.1㎛ / 0.5㎛ / 1㎛
- Stroke : 20mm ~ 120mm
- Jitter(in-position stability) below 50nm and quick response time
- Minimal backlash by use of a full closed-loop control of linear encoders
- Component for inspection systems of optical parts, optoelectronic parts, bio materials, printed circuit boards and mobile phones



Specification

Model

JSAH20

JSAH40

JSAH60

JSAH80

JSAH100

JSAH120

Performance Parameters

Units

Normal Load Capacity

kg

5

5

5

5

5

5

Average Acceleration *Note1

m/sec²

2.5

2.5

2.5

2.5

2.5

2.5

Max Velocity *Note1

m/sec

0.2

0.3

0.35

0.4

0.5

0.55

Straightness

3

3

3

3

4

4

Flatness

6

6

8

8

10

10

Positional Accuracy *Note2

3

3

4

4

5

5

Bi-directional Repeatability *Note2

±1

±1

±1

±1

±1

±1

Total Weight

kg

1.8

2

2.2

2.4

2.6

2.8

Mover Weight

kg

0.7

0.8

1.0

1.1

1.3

1.4

    Measured at the mover center with no load (Temp. 20±2˚C).
    *Note1 : Encoder resolution : 1um     *Note2 : Encoder resolution : 0.1um
    ※ Acceleration, Velocity, Accuracy, Repeatability depend upon encoder resolution
