Description

Description

- Cost effective general purpose linear motors
- High force high speed control
- 3 series, 6 types available - Force range : 78N~2400N
- Suitable for equipment for FPD production and FA

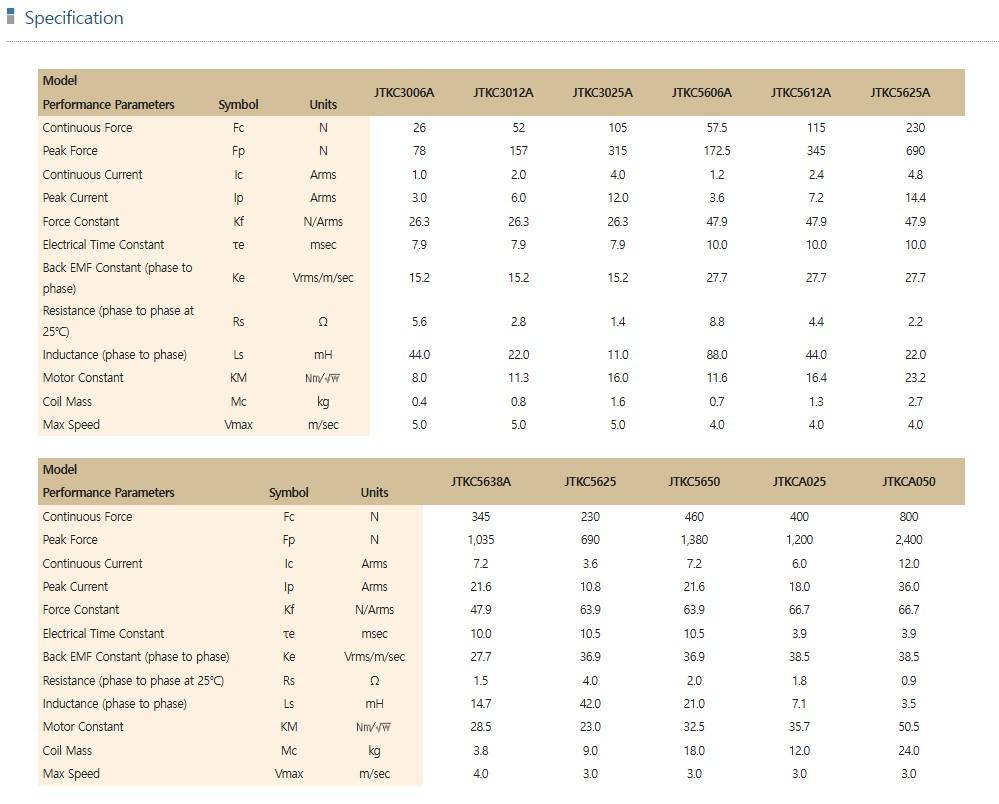

Specification

Model JTKC3006A JTKC3012A JTKC3025A JTKC5606A JTKC5612A JTKC5625A
Performance Parameters

Symbol

Units

Continuous Force

Fc

N

26

52

105

57.5

115

230

Peak Force

Fp

N

78

157

315

172.5

345

690

Continuous Current

Ic

Arms

1.0

2.0

4.0

1.2

2.4

4.8

Peak Current

Ip

Arms

3.0

6.0

12.0

3.6

7.2

14.4

Force Constant

Kf

N/Arms

26.3

26.3

26.3

47.9

47.9

47.9

Electrical Time Constant

τe

msec

7.9

7.9

7.9

10.0

10.0

10.0

Back EMF Constant (phase to phase)

Ke

Vrms/m/sec

15.2

15.2

15.2

27.7

27.7

27.7

Resistance (phase to phase at 25℃)

Rs

Ω

5.6

2.8

1.4

8.8

4.4

2.2

Inductance (phase to phase)

Ls

mH

44.0

22.0

11.0

88.0

44.0

22.0

Motor Constant

KM

Justek Iron-Core Type JTKC Series

8.0

11.3

16.0

11.6

16.4

23.2

Coil Mass

Mc

kg

0.4

0.8

1.6

0.7

1.3

2.7

Max Speed

Vmax

m/sec

5.0

5.0

5.0

4.0

4.0

4.0



Model

JTKC5638A

JTKC5625

JTKC5650

JTKCA025

JTKCA050

Performance Parameters

Symbol

Units

Continuous Force

Fc

N

345

230

460

400

800

Peak Force

Fp

N

1,035

690

1,380

1,200

2,400

Continuous Current

Ic

Arms

7.2

3.6

7.2

6.0

12.0

Peak Current

Ip

Arms

21.6

10.8

21.6

18.0

36.0

Force Constant

Kf

N/Arms

47.9

63.9

63.9

66.7

66.7

Electrical Time Constant

τe

msec

10.0

10.5

10.5

3.9

3.9

Back EMF Constant (phase to phase)

Ke

Vrms/m/sec

27.7

36.9

36.9

38.5

38.5

Resistance (phase to phase at 25℃)

Rs

Ω

1.5

4.0

2.0

1.8

0.9

Inductance (phase to phase)

Ls

mH

14.7

42.0

21.0

7.1

3.5

Motor Constant

KM

Justek Iron-Core Type JTKC Series 1

28.5

23.0

32.5

35.7

50.5

Coil Mass

Mc

kg

3.8

9.0

18.0

12.0

24.0

Max Speed

Vmax

m/sec

4.0

3.0

3.0

3.0

3.0
