Justek

Justek

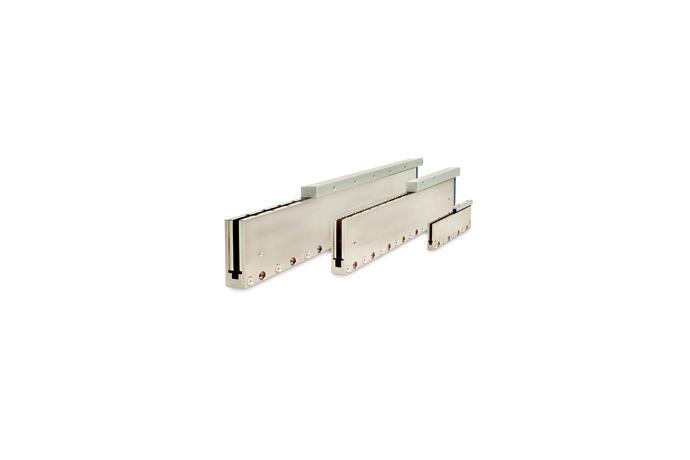

Coreless Type

Model

Series

Linear Motors


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Description

- Low speed ripple due to minimal cogging
- High force, high precision control
- 4 series, 11 types available
- Force range : 30N~4000N
- Suitable for precision production equipment for FPD and semiconductors

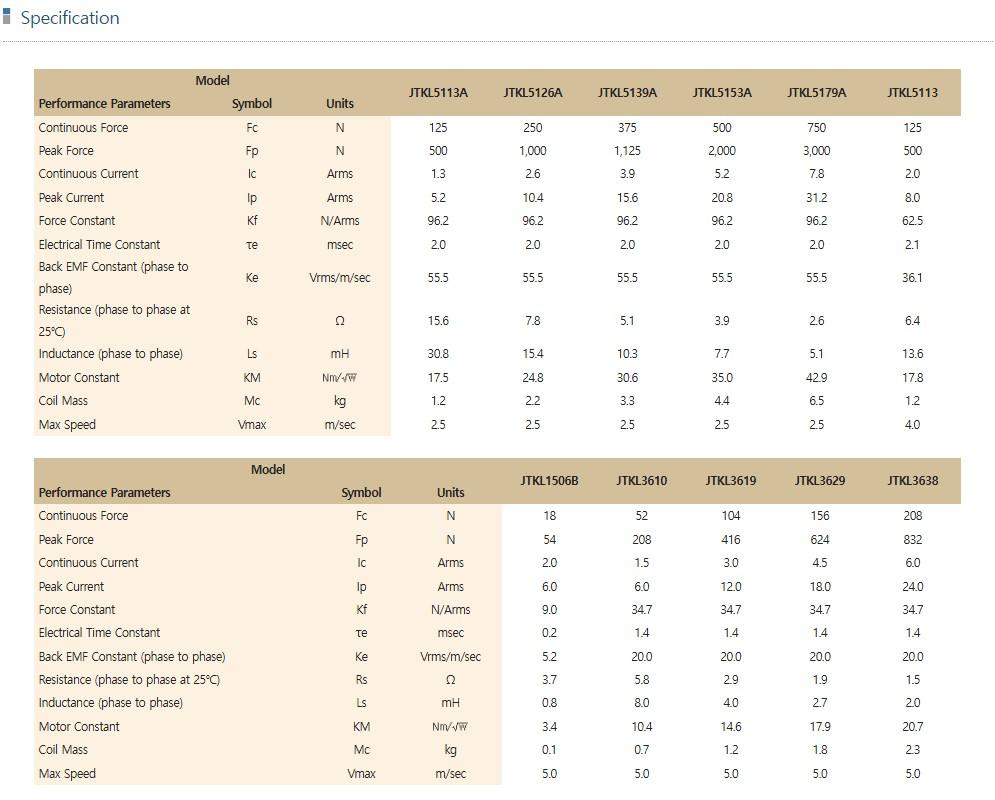

Specification

Model

JTKL5113A

JTKL5126A

JTKL5139A

JTKL5153A

JTKL5179A

JTKL5113

Performance Parameters

Symbol

Units

Continuous Force

Fc

N

125

250

375

500

750

125

Peak Force

Fp

N

500

1,000

1,125

2,000

3,000

500

Continuous Current

Ic

Arms

1.3

2.6

3.9

5.2

7.8

2.0

Peak Current

Ip

Arms

5.2

10.4

15.6

20.8

31.2

8.0

Force Constant

Kf

N/Arms

96.2

96.2

96.2

96.2

96.2

62.5

Electrical Time Constant

τe

msec

2.0

2.0

2.0

2.0

2.0

2.1

Back EMF Constant (phase to phase)

Ke

Vrms/m/sec

55.5

55.5

55.5

55.5

55.5

36.1

Resistance (phase to phase at 25℃)

Rs

Ω

15.6

7.8

5.1

3.9

2.6

6.4

Inductance (phase to phase)

Ls

mH

30.8

15.4

10.3

7.7

5.1

13.6

Motor Constant

KM

Justek Coreless Type JTKL Series

17.5

24.8

30.6

35.0

42.9

17.8

Coil Mass

Mc

kg

1.2

2.2

3.3

4.4

6.5

1.2

Max Speed

Vmax

m/sec

2.5

2.5

2.5

2.5

2.5

4.0



Model

JTKL1506B

JTKL3610

JTKL3619

JTKL3629

JTKL3638

Performance Parameters

Symbol

Units

Continuous Force

Fc

N

18

52

104

156

208

Peak Force

Fp

N

54

208

416

624

832

Continuous Current

Ic

Arms

2.0

1.5

3.0

4.5

6.0

Peak Current

Ip

Arms

6.0

6.0

12.0

18.0

24.0

Force Constant

Kf

N/Arms

9.0

34.7

34.7

34.7

34.7

Electrical Time Constant

τe

msec

0.2

1.4

1.4

1.4

1.4

Back EMF Constant (phase to phase)

Ke

Vrms/m/sec

5.2

20.0

20.0

20.0

20.0

Resistance (phase to phase at 25℃)

Rs

Ω

3.7

5.8

2.9

1.9

1.5

Inductance (phase to phase)

Ls

mH

0.8

8.0

4.0

2.7

2.0

Motor Constant

KM

Justek Coreless Type JTKL Series 1

3.4

10.4

14.6

17.9

20.7

Coil Mass

Mc

kg

0.1

0.7

1.2

1.8

2.3

Max Speed

Vmax

m/sec

5.0

5.0

5.0

5.0

5.0

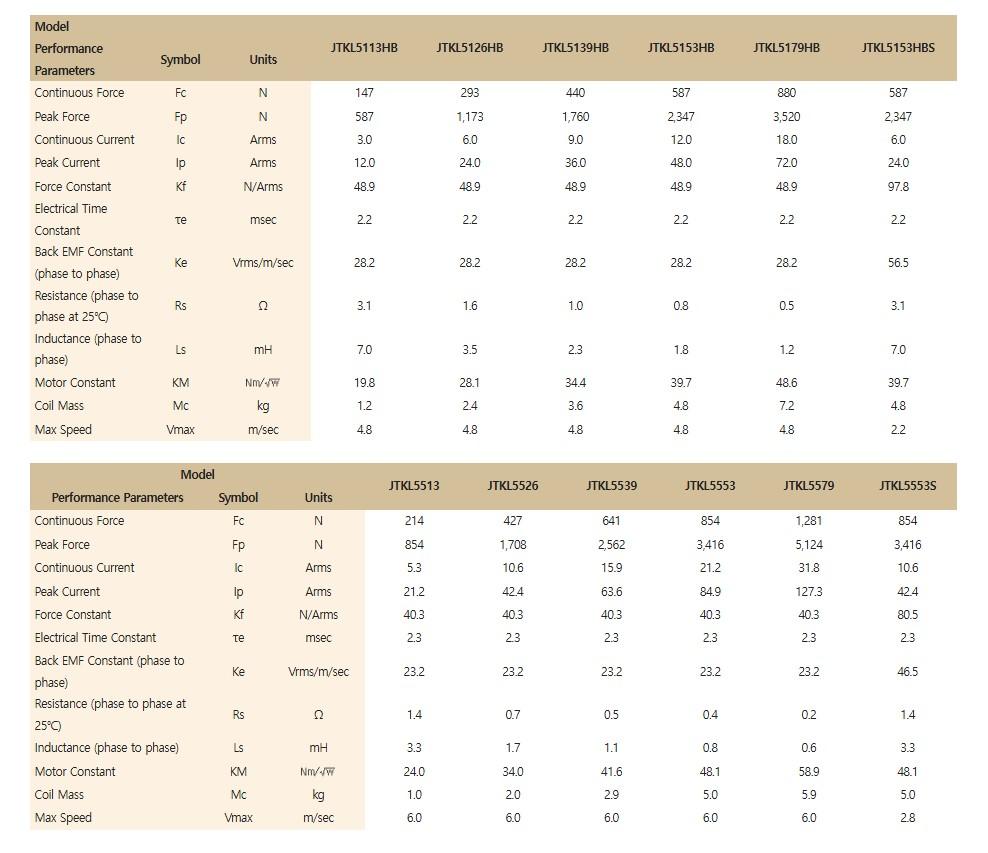

Model

JTKL5113HB

JTKL5126HB

JTKL5139HB

JTKL5153HB

JTKL5179HB

JTKL5153HBS

Performance Parameters

Symbol

Units

Continuous Force

Fc

N

147

293

440

587

880

587

Peak Force

Fp

N

587

1,173

1,760

2,347

3,520

2,347

Continuous Current

Ic

Arms

3.0

6.0

9.0

12.0

18.0

6.0

Peak Current

Ip

Arms

12.0

24.0

36.0

48.0

72.0

24.0

Force Constant

Kf

N/Arms

48.9

48.9

48.9

48.9

48.9

97.8

Electrical Time Constant

τe

msec

2.2

2.2

2.2

2.2

2.2

2.2

Back EMF Constant (phase to phase)

Ke

Vrms/m/sec

28.2

28.2

28.2

28.2

28.2

56.5

Resistance (phase to phase at 25℃)

Rs

Ω

3.1

1.6

1.0

0.8

0.5

3.1

Inductance (phase to phase)

Ls

mH

7.0

3.5

2.3

1.8

1.2

7.0

Motor Constant

KM

Justek Coreless Type JTKL Series 2

19.8

28.1

34.4

39.7

48.6

39.7

Coil Mass

Mc

kg

1.2

2.4

3.6

4.8

7.2

4.8

Max Speed

Vmax

m/sec

4.8

4.8

4.8

4.8

4.8

2.2



Model

JTKL5513

JTKL5526

JTKL5539

JTKL5553

JTKL5579

JTKL5553S

Performance Parameters

Symbol

Units

Continuous Force

Fc

N

214

427

641

854

1,281

854

Peak Force

Fp

N

854

1,708

2,562

3,416

5,124

3,416

Continuous Current

Ic

Arms

5.3

10.6

15.9

21.2

31.8

10.6

Peak Current

Ip

Arms

21.2

42.4

63.6

84.9

127.3

42.4

Force Constant

Kf

N/Arms

40.3

40.3

40.3

40.3

40.3

80.5

Electrical Time Constant

τe

msec

2.3

2.3

2.3

2.3

2.3

2.3

Back EMF Constant (phase to phase)

Ke

Vrms/m/sec

23.2

23.2

23.2

23.2

23.2

46.5

Resistance (phase to phase at 25℃)

Rs

Ω

1.4

0.7

0.5

0.4

0.2

1.4

Inductance (phase to phase)

Ls

mH

3.3

1.7

1.1

0.8

0.6

3.3

Motor Constant

KM

Justek Coreless Type JTKL Series 3

24.0

34.0

41.6

48.1

58.9

48.1

Coil Mass

Mc

kg

1.0

2.0

2.9

5.0

5.9

5.0

Max Speed

Vmax

m/sec

6.0

6.0

6.0

6.0

6.0

2.8
