Special Feature
* Built-in pulse function
* Selectable various functions
* Built-in remote control function
* High-performance direc-current TIG arc welder
* Excellent performance for thin, medium, or thick plates
* Single-phase input
|
 Specification  |
|||||||||||||||||||||||
|
 MODE  |

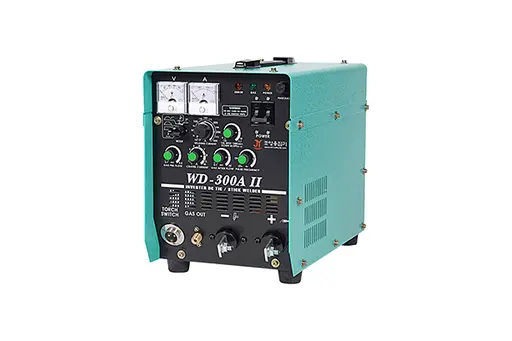

 WD-300A II  |
||||||||||||||||||||||
|
 Process  |
 TIG  |
 STICK  |
|||||||||||||||||||||
| Output Current | A | 300 | 180 | ||||||||||||||||||||
|
 Input Voltage  |
V |
 220 ±10%  |
|||||||||||||||||||||
|
 Rated Frequency  |
Hz |
 50 / 60  |
|||||||||||||||||||||
|
 Rated Input  |
KVA |
 8.6  |
6.5 | ||||||||||||||||||||
|
 Rated load Voltage  |
 V  |
 22  |
27.2 | ||||||||||||||||||||
|
 No load Voltage  |
 V  |
 70  |
|||||||||||||||||||||
| Duty Cycle | % | 50 | |||||||||||||||||||||
|
 Output Current range  |
 A  |
 10~ 300  |
10 ~ 180 | ||||||||||||||||||||
|
 Gas Pre flow  |
 sec  |
 0.1 ~ 0.5  |
|||||||||||||||||||||
|
 Gas After flow  |
 sec  |
 0.1 ~ 22  |
|||||||||||||||||||||
|
 Down Slope  |
 sec  |
 S ~ L(Short ~ Long)  |
|||||||||||||||||||||
|
 Arc Spot  |
 sec  |
 0.1 ~ 10  |
|||||||||||||||||||||
|
 Pluse Frequency  |
 Hz  |
 3 ~ 12  |
|||||||||||||||||||||
|
 Pluse Width  |
 %  |
 50  |
|||||||||||||||||||||
|
 Crater control  |

  |
 Off, On, Repeat  |
|||||||||||||||||||||
|
 Dimension (WxDxH)  |
 mm  |
 263 x 454 x 352  |
|||||||||||||||||||||
|
 Weight  |
 kg  |
 21  |
|||||||||||||||||||||
※ Product specifications can be changed unexpectedly for product performance improvement.
