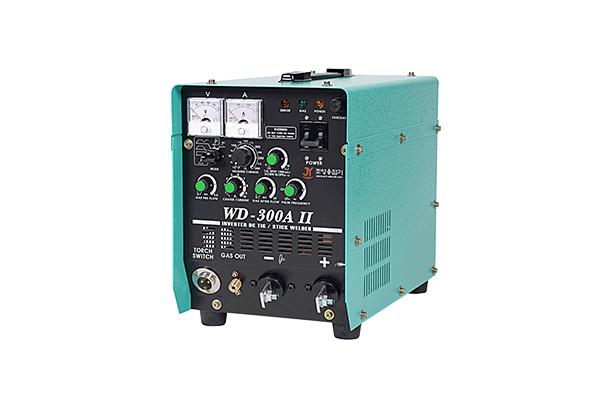

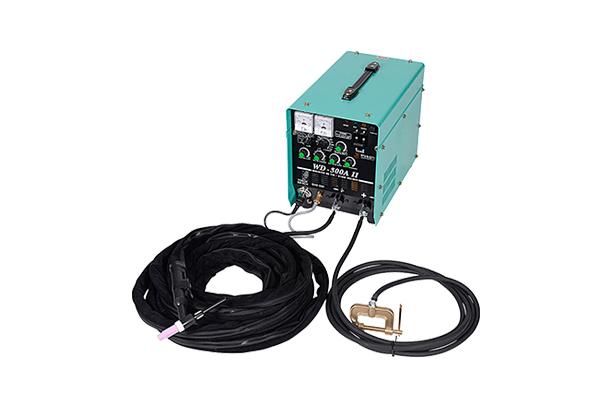

TIG Welding Machine (WD Series)
Model Name
WD-300A II
Series
TIG Welding
View All
Data
-
Manufacturer information
provider logo
JOYOUNG WELDING

Welding M/C manufacturer, DC arc welder, TIG, Argon, CO2, MAG welder, Plasma cutter, Mixed type gas welder and more

Problem with product info?
Update request
Manufacturer
JOYOUNG WELDING
Product Type
Machine
Brand
-
SKU
130043
Product Name
TIG Welding Machine (WD Series)
Model Name
WD-300A II
Size
-
Weight
-
Product Details

Special Feature

* Built-in pulse function
* Selectable various functions
* Built-in remote control function
* High-performance direc-current TIG arc welder
* Excellent performance for thin, medium, or thick plates
* Single-phase input



Specification

MODE

WD-300A II

Process



TIG

STICK
 Output Current A   300 180

Input Voltage

 V

220 ±10%

Rated Frequency

 Hz

50 / 60

Rated Input

 KVA

8.6

 6.5

Rated load Voltage

V

22

 27.2

No load Voltage

V

70
Duty Cycle % 50

Output Current range

A

10~ 300

 10 ~ 180

Gas Pre flow

sec

0.1 ~ 0.5

Gas After flow

sec

0.1 ~ 22

Down Slope

sec

S ~ L(Short ~ Long)

Arc Spot

sec

0.1 ~ 10

Pluse Frequency

Hz

3  ~ 12

Pluse Width

%

50

Crater control



 Off, On, Repeat

Dimension (WxDxH)

mm

263 x 454 x 352

Weight

kg

21

※ Product specifications can be changed unexpectedly for product performance improvement.
