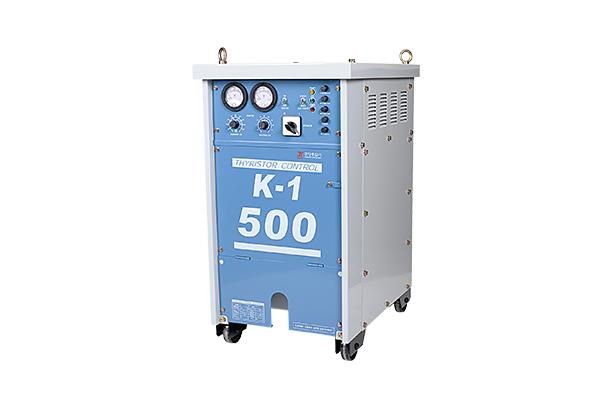

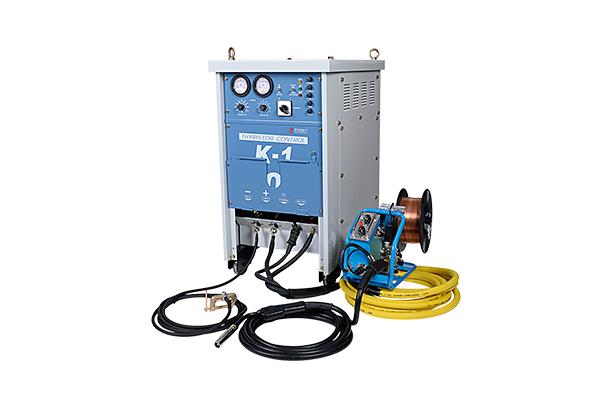

SCR CO2 Welding Machine (K1 Series)
Model Name
K1-500
Series
SCR CO2 Welding
View All
Data
-
Manufacturer information
provider logo
JOYOUNG WELDING

Welding M/C manufacturer, DC arc welder, TIG, Argon, CO2, MAG welder, Plasma cutter, Mixed type gas welder and more

Problem with product info?
Update request
Manufacturer
JOYOUNG WELDING
Product Type
Machine
Brand
-
SKU
130058
Product Name
SCR CO2 Welding Machine (K1 Series)
Model Name
K1-500
Size
-
Weight
-
Product Details

Special Feature

THYRISTOR(SCR) Control
* Weldability : Good weldability is accomplished in all the welding current ranges form minimum current to maximum current with the sustainable control by thyristor.
* Durability : The main trnasformer, the core of welder, is made of good conductive material to show good heat-resistance and durability.
* Economical efficiency : Energy-saving design saves the power during unload of arc.



Specification

Output Current range

A

500

Output Voltage range

V

 220V / 380V / 440V ± 10%

Input Voltage



 3 Phase

Input Phase

Hz

 50/60

Rated Frequency

KVA / KW

  33.2 / 30

Rated Input

V

  42

Rated load Voltage

A

 50~500

No load Voltage

V

 14~42

Duty Cycle

%

 80

Control



 THYRISTOR (SCR) 방식

Dimension (WxDxH)

W*D*H (m/m)

515 x 715 x 920

Weight

kg

 210

※ Product specifications can be changed unexpectedly for product performance improvement.
