JMC HYDRAULICS

JMC HYDRAULICS

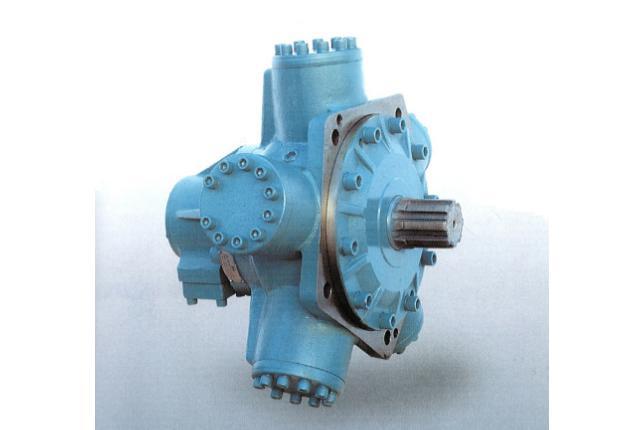

Hydraulic Motor

Model

Series

JRC


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

SPECIFICATION

Model

Displacement (cc/rev)

PRESSURE(kgf/cm²)

SPEED(rpm)

TORQUE(kgf·m)

RATED OUTPUT

(kW)

WEIGHT

(kg)

RATED PRESSURE

INSTANTANEOUS

MAX

PRESSURE

RATED SPEED

(140kgf/cm²)

CONTINUOUS

MAX SPEED

RATED

17.9

MAX

JRC-5000

5032

210

250

110

130

1534

1727

174

400

- Instantaneous maximum pressure means temporary pressure increase including surge pressure.   - Special order can be placed upon request




PERFORMANCE CURVE





BEARING LIFE


- The left diagram indicate bearing life(B10Life) under the conditions of pressure and load on the shaft at the speed of 100 rpm

- The case is indicated that radial load is concentrated on the central part of output shaft key




DIMENSIONS




STRAIGHT SHAFT

TAPER SHAFT

INVOLUTE SPLINE SHAFT (KS R2001)

SQUARE SPLINE SHAFT
