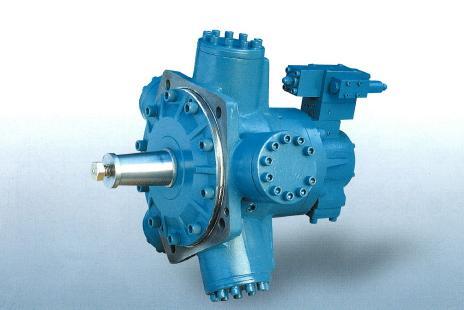

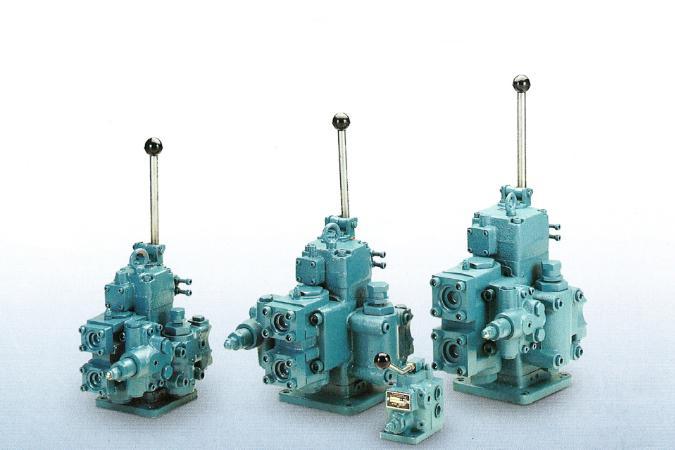

Hydraulic Radial Piston Motor, Control Valve, Logic Valve
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
JMC HYDRAULICS
Product Type
Machine
Brand
-
SKU
90662
Product Name
Logic Valve
Model Name
JLCV-16
Size
-
Weight
-
Product Details
SPECIFICATION
PORT SIZE (mm) | AREA RATIO | RATED PRESSURE (kgf/cm²) (PORT A. B. X. E1. E2) | AREA (cm²) | RATED FLOW (ℓ/min) | POPPET STROKE (mm) | |||
A1 | A2 | A3 | E | D | ||||
16 | A (2:1) B (14.3:1) | 315 | 1.54 2.14 | 0.73 0.13 | 2.27 2.27 | 200 | 7 | 7 |
PRESSURE DROP
DIMENSIONS
