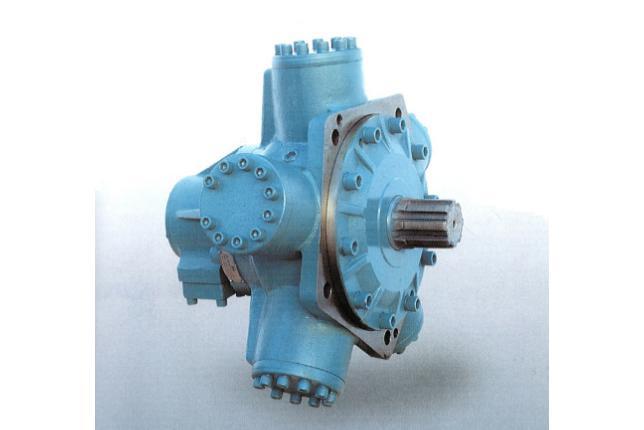

Hydraulic Radial Piston Motor, Control Valve, Logic Valve
SPECIFICATION
Model | Displacement (cc/rev) | PRESSURE(kgf/cm²) | SPEED(rpm) | TORQUE(kgf·m) | RATED OUTPUT (kW) | WEIGHT (kg) | |||
RATED PRESSURE | INSTANTANEOUS MAX PRESSURE | RATED SPEED | (140kgf/cm²) CONTINUOUS MAX SPEED | RATED | 17.9 MAX | ||||
JRC-4500 | 4516 | 210 | 250 | 120 | 145 | 1382 | 1643 | 170 | 396 |
- Instantaneous maximum pressure means temporary pressure increase including surge pressure. - Special order can be placed upon request
PERFORMANCE CURVE
BEARING LIFE
- The left diagram indicate bearing life(B10Life) under the conditions of pressure and load on the shaft at the speed of 100 rpm
- The case is indicated that radial load is concentrated on the central part of output shaft key
DIMENSIONS
STRAIGHT SHAFT | TAPER SHAFT |
INVOLUTE SPLINE SHAFT (KS R2001) | SQUARE SPLINE SHAFT |
