Product Name

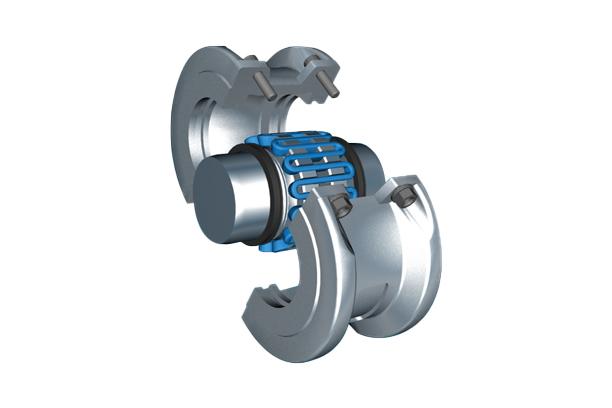

Grid Coupling
Model Name
SH-type, SV-type, SAS-type, SFS-type, SBW-type
Size
-
Weight
-
Product Details
|
We can get more favorable convinience and cost down by using the Jac grid coupling.
|
 |
SH type Dimensions
|
size
|
max.
speed (rpm) |
basic
torque (kgf.cm) |
max.
bore (mm) |
Dimension (mm)
|
Gap (mm)
|
weight
(kg) |
grease
(kg) |
||||||
|
A
|
B
|
C
|
D
|
E
|
Min.
|
normal
|
max.
|
||||||
|
20S
|
4500
|
486
|
30
|
101.6
|
98
|
47.5
|
39.7
|
66.5
|
1.5
|
3
|
4.5
|
1.9
|
0.03
|
|
30S
|
4500
|
1383
|
36
|
111
|
98
|
47.5
|
49.2
|
68.3
|
1.5
|
3
|
4.5
|
2.6
|
0.03
|
|
40S
|
4500
|
2304
|
44
|
117.5
|
104.6
|
50.8
|
57.4
|
70
|
1.5
|
3
|
4.5
|
3.4
|
0.05
|
|
50S
|
4500
|
4033
|
50
|
138
|
123.6
|
60.3
|
66.7
|
79.5
|
1.5
|
3
|
4.5
|
5.4
|
0.05
|
|
60S
|
4350
|
6337
|
57
|
150.5
|
130
|
63.5
|
76.2
|
92
|
1.5
|
3
|
4.5
|
7.3
|
0.09
|
|
70S
|
4125
|
9127
|
68
|
161.9
|
155.4
|
76.2
|
87.3
|
95
|
1.5
|
3
|
4.5
|
10
|
0.11
|
|
80S
|
3600
|
19010
|
82
|
194
|
180.8
|
88.9
|
104.8
|
116
|
1.5
|
3
|
6
|
18
|
0.17
|
|
90S
|
3600
|
34564
|
95
|
213
|
199.8
|
98.4
|
123.8
|
122
|
1.5
|
3
|
6
|
25
|
0.25
|
|
100S
|
2440
|
58183
|
107
|
250
|
245.7
|
120.6
|
142
|
155.5
|
1.5
|
4.5
|
9.5
|
42
|
0.43
|
|
110S
|
2250
|
86411
|
117
|
270
|
258.5
|
127
|
160.3
|
161.5
|
1.5
|
4.5
|
9.5
|
54
|
0.51
|
|
120S
|
2025
|
126736
|
136
|
308
|
304.4
|
149.2
|
179.4
|
191.5
|
1.5
|
6
|
12.5
|
81
|
0.73
|
|
130S
|
1800
|
184343
|
165
|
346
|
329.8
|
161.9
|
217.5
|
195
|
1.5
|
6
|
12.5
|
121
|
0.91
|
|
140S
|
1650
|
265993
|
184
|
384
|
371.6
|
182.8
|
254
|
201
|
1.5
|
6
|
12.5
|
178
|
1.13
|
|
150S
|
1500
|
368686
|
203
|
453.1
|
371.8
|
182.9
|
269.2
|
271.3
|
1.5
|
6
|
12.5
|
234
|
1.95
|
|
160S
|
1350
|
518465
|
228
|
501.4
|
403.3
|
198.1
|
304.8
|
278.9
|
1.5
|
6
|
12.5
|
317
|
2.81
|
|
170S
|
1225
|
691286
|
279
|
566.4
|
437.8
|
215.9
|
355.6
|
304.3
|
1.5
|
6
|
12.5
|
448
|
3.49
|
|
180S
|
1100
|
958584
|
311
|
629.9
|
483.6
|
238.8
|
397.7
|
321.1
|
1.5
|
6
|
12.5
|
619
|
3.76
|
|
190S
|
1050
|
1267358
|
339
|
675.5
|
524.2
|
259.18
|
436.9
|
325.1
|
1.5
|
6
|
12.5
|
776
|
4.4
|
|
200S
|
900
|
1728216
|
361
|
756.9
|
564.8
|
279.4
|
497.8
|
355.6
|
1.5
|
6
|
12.5
|
1057
|
5.62
|
|
(Note) Coupling weight, without Bore machining
|
|||||||||||||
SV type Dimensions
|
size
|
max.
speed (rpm) |
basic
torque (kgf.cm) |
max.
bore (mm) |
Dimension (mm)
|
Gap (mm)
|
weight
(kg) |
grease
(kg) |
||||||
|
A'
|
B
|
C
|
D
|
E'
|
Min.
|
normal
|
max.
|
||||||
|
20S
|
4500
|
486
|
30
|
111.1
|
98
|
47.5
|
39.7
|
24.2
|
1.5
|
3
|
4.5
|
1.9
|
0.03
|
|
30S
|
4500
|
1383
|
36
|
120.7
|
98
|
47.5
|
49.2
|
25
|
1.5
|
3
|
4.5
|
2.6
|
0.03
|
|
40S
|
4500
|
2304
|
44
|
128.5
|
104.6
|
50.8
|
57.4
|
25.7
|
1.5
|
3
|
4.5
|
3.4
|
0.05
|
|
50S
|
4500
|
4033
|
50
|
147.6
|
123.6
|
60.3
|
66.7
|
31.2
|
1.5
|
3
|
4.5
|
5.4
|
0.05
|
|
60S
|
4350
|
6337
|
57
|
162
|
130
|
63.5
|
76.2
|
32.2
|
1.5
|
3
|
4.5
|
7.3
|
0.09
|
|
70S
|
4125
|
9127
|
68
|
173
|
155.4
|
76.2
|
87.3
|
33.7
|
1.5
|
3
|
4.5
|
10
|
0.11
|
|
80S
|
3600
|
19010
|
82
|
200
|
180.8
|
88.9
|
104.8
|
44.2
|
1.5
|
3
|
6
|
18
|
0.17
|
|
90S
|
3600
|
34564
|
95
|
232.8
|
199.8
|
98.4
|
123.8
|
47.7
|
1.5
|
3
|
6
|
25
|
0.25
|
|
100S
|
2440
|
58183
|
107
|
266.7
|
245.7
|
120.6
|
142
|
60
|
1.5
|
4.5
|
9.5
|
42
|
0.43
|
|
110S
|
2250
|
86411
|
117
|
285.8
|
258.5
|
127
|
160.3
|
64.2
|
1.5
|
4.5
|
9.5
|
54
|
0.51
|
|
120S
|
2025
|
126736
|
136
|
319
|
304.4
|
149.2
|
179.4
|
73.4
|
1.5
|
6
|
12.5
|
81
|
0.73
|
|
130S
|
1800
|
184343
|
165
|
377.8
|
329.8
|
161.9
|
217.5
|
75.1
|
1.5
|
6
|
12.5
|
121
|
0.91
|
|
140S
|
1650
|
265993
|
184
|
416
|
371.6
|
182.8
|
254
|
78.2
|
1.5
|
6
|
12.5
|
178
|
1.13
|
|
150S
|
1500
|
368686
|
203
|
476.3
|
371.8
|
182.9
|
269.2
|
106.9
|
1.5
|
6
|
12.5
|
234
|
1.95
|
|
160S
|
1350
|
518465
|
228
|
533.4
|
403.3
|
198.1
|
304.8
|
114.3
|
1.5
|
6
|
12.5
|
317
|
2.81
|
|
170S
|
1225
|
691286
|
279
|
584.2
|
437.8
|
215.9
|
355.6
|
119.4
|
1.5
|
6
|
12.5
|
448
|
3.49
|
|
180S
|
1100
|
958584
|
311
|
630
|
483.6
|
238.8
|
397.7
|
130
|
1.5
|
6
|
12.5
|
619
|
3.76
|
|
190S
|
1050
|
1267358
|
339
|
685
|
524.2
|
259.18
|
436.9
|
135
|
1.5
|
6
|
12.5
|
776
|
4.4
|
|
200S
|
900
|
1728216
|
361
|
737
|
564.8
|
279.4
|
497.8
|
145
|
1.5
|
6
|
12.5
|
1057
|
5.62
|
|
(Note) Coupling weight, without Bore machining
|
|||||||||||||
SAS / SFS type Dimensions
|
size
|
max.
speed (rpm) |
basic
torque (kgf.cm) |
max.
bore flange/hub (mm) |
Dimension (mm)
|
|||||||||
|
A
|
B
|
C
|
BE(SAS)
|
BE(SFS)
|
N
|
F
|
Gap
|
||||||
|
Min.
|
Max.
|
Min.
|
Max.
|
||||||||||
|
20S
|
4500
|
486
|
30/36
|
101.6
|
98
|
47.5
|
89
|
203
|
45
|
102
|
52
|
86
|
5
|
|
30S
|
4500
|
1383
|
36/44
|
111
|
98
|
47.5
|
89
|
216
|
45
|
109
|
59
|
94
|
5
|
|
40S
|
4500
|
2304
|
44/57
|
117.5
|
104.6
|
50.8
|
89
|
216
|
45
|
109
|
78
|
113
|
5
|
|
50S
|
4500
|
4033
|
50/64
|
138
|
123.6
|
60.3
|
112
|
216
|
57
|
109
|
87
|
126
|
5
|
|
60S
|
4350
|
6337
|
57/79
|
150.5
|
130
|
63.5
|
127
|
330
|
64
|
166
|
103
|
145
|
5
|
|
70S
|
4125
|
9127
|
68/83
|
161.9
|
155.4
|
76.2
|
127
|
330
|
64
|
166
|
109
|
153
|
5
|
|
80S
|
3600
|
19010
|
82/95
|
194
|
180.8
|
88.9
|
184
|
406
|
93
|
204
|
122
|
178
|
5
|
|
90S
|
3600
|
34564
|
95/108
|
213
|
199.8
|
98.4
|
184
|
406
|
93
|
204
|
142
|
210
|
5
|
|
100S
|
2440
|
58183
|
107/127
|
250
|
245.7
|
120.6
|
203
|
406
|
103
|
205
|
171
|
251
|
65
|
|
110S
|
2250
|
86411
|
117/149
|
270
|
258.5
|
127
|
210
|
406
|
106
|
205
|
196
|
277
|
6.5
|
|
120S
|
2025
|
126736
|
136/165
|
308
|
304.4
|
149.2
|
246
|
406
|
125
|
205
|
225
|
319
|
9.5
|
|
130S
|
1800
|
184343
|
165/178
|
346
|
329.8
|
161.9
|
257
|
406
|
130
|
205
|
238
|
346
|
9.5
|
|
140S
|
1650
|
265993
|
184/203
|
384
|
371.6
|
182.8
|
267
|
406
|
135
|
205
|
266
|
386
|
9.5
|
|
150S
|
1500
|
368686
|
203/254
|
453.1
|
371.8
|
182.9
|
345
|
374
|
175
|
187
|
334
|
425
|
9.5
|
|
160S
|
1350
|
518465
|
228/279
|
501.4
|
403.3
|
198.1
|
356
|
406
|
180
|
205
|
366
|
457
|
9.5
|
|
170S
|
1225
|
691286
|
279/330
|
566.4
|
437.8
|
215.9
|
384
|
445
|
194
|
224
|
425
|
527
|
9.5
|
|
180S
|
1100
|
958584
|
311/330
|
629.9
|
483.6
|
238.8
|
400
|
490
|
202
|
247
|
451
|
591
|
9.5
|
|
190S
|
1050
|
1267358
|
339/362
|
675.5
|
524.2
|
259.1
|
411
|
530
|
207
|
267
|
508
|
660
|
9.5
|
|
200S
|
900
|
1728216
|
361/381
|
756.9
|
564.8
|
279.4
|
445
|
575
|
224
|
289
|
530
|
711
|
9.5
|
