Product Detail
 VIKING-8000 details  VIKING-8000 details

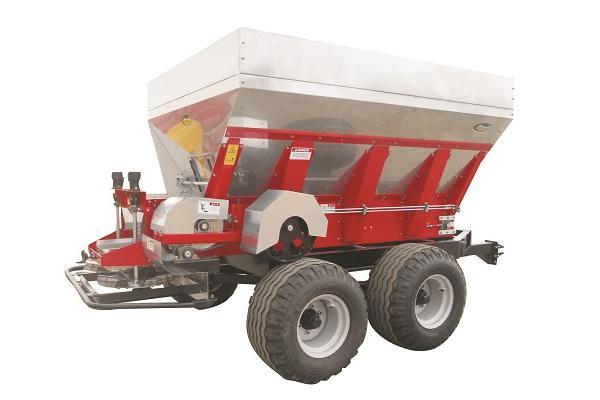

VIKING SPREADER

VIKING-8000

Urgent? then use Komachine Service
Description

* Stainless mesh conveyer : It conveys more exact amount of fertilizer or sand and is more durable than rubber conveyers
* Stainless Steel parts :
A hopper, feeding conveyer belt, spinner discs, vanes
and prevent plate
* The speed of spinner disc can be controlled by a balve
* Ground driven :
As the fertilizer that fed into spinner disc varies according
to the rotating speed of a wheel, it is possible to spread
evenly regardless of the speed of a vehicle
(As a result, the faster a vehicle run the larger amiunt of fertilzier is fed, the slower a vehicle run the smaller amont of fertilizer is fed)
* Hydraulic automatic system :
The operation of conveyer and that of fertilizer
outlet is linked both are controlled by one hydraulic lever
* Relief valve :
Durability of htdraulic motor for spinner disc is improved by
installing relief valve
(It controls the pressure that occurred when the motor stops and overload)
* Hydraulic outlet : The outlet size can be controlled and fixed as you want
* Windows to see inside fertilizer
* Safety grill : It is optional
* Various tire size is optional : 500/60-22.5, 650/65-30.5
* Hydraulic driven system : optional

SPECIFICATION

MODEL

VIKING-8000

VIKING-8000W

VIKING-8000S

VIKING-8000SW



 HOPPER
CAPACITY

7㎥

7㎥

7㎥

7㎥



 NOMINAL
CAPACITY

8Ton

8Ton

8Ton

8Ton



 WIDTH(mm)

2490

2490

2800

2800



 HEIGHT(mm)

2430

2400

2465

2435



FEED MESH CHAIN
WIDTH(mm)

500

800

500

800



DISC SIZE(mm)

600

800

600

800

AXLES

TANDEM

TANDEM

SINGLE

SINGLE

TIRES

500/50-17 x 4

500/50-17 x 4

650/65-30.5 x 2

650/65-30.5 x 2

TYPE

PULL TYPE

PULL TYPE

PULL TYPE

PULL TYPE

POWER

GROUND DRIVEN
/HYDRAULIC

GROUND DRIVEN
/HYDRAULIC

GROUND DRIVEN
/HYDRAULIC

GROUND DRIVEN
/HYDRAULIC
