MULTI SPREADER IOD-600H, IOD-750H, IOD-900H details MULTI SPREADER IOD-600H, IOD-750H, IOD-900H details

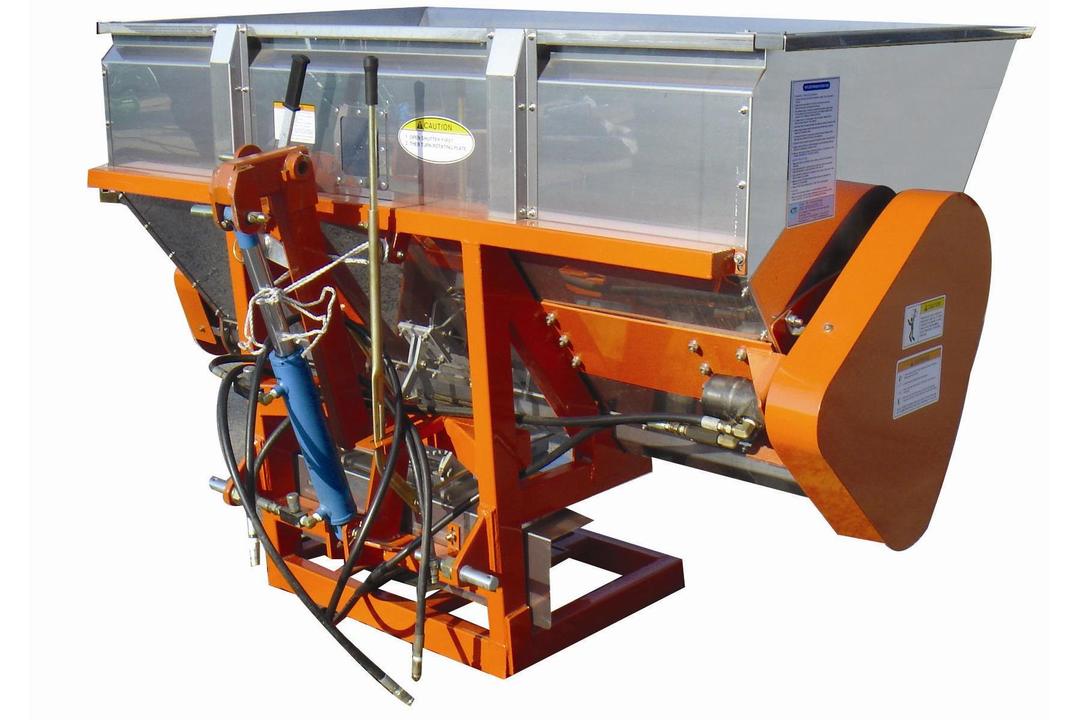

MULTI SPREADER

MULTIPURPOSE SPREADER

IOD-600H, IOD-750H, IOD-900H

Urgent? then use Komachine Service
Description

* Two type special shutter spreads both granule fertilizers and organic compost
* Various materials spreading : organic compost, granule fertilizers, lime, sand, salt, wood chip and etc
* Scoop-up the fertilizer on the ground by pushing buckets(Blade mounted)
* Bucket function allows easy loading of organic compost and fertilizer
* Spinner : Hydraulic motor
* Agitator : Hydraulic motor
* Feeding : Auger by hydraulic motor
* Hopper, precention, spinner, vanes and etc : Stainless Steel
* Types : General(IOD-600H), Mid(IOD-750H), Big(IOD-900H)

SPECIFICATION

MODEL

IOD-600H

IOD-750H

IOD-900H

CAPACITY(ℓ)

780

970

1160

N. DISC

1

1

1

WIDTH(mm)

1500

1800

2100

SPREADING
WIDTH(m)

8~16

8~16

8~16

FEATURE

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

2. BUCKET

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

2. BUCKET

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

2. BUCKET

MODEL

IOD-600J

IOD-750J

IOD-900J

CAPACITY(ℓ)

780

970

1160

N. DISC

1

1

1

WIDTH(mm)

1500

1800

2100

SPREADING
WIDTH(m)

8~16

8~16

8~16

FEATURE

1. HYDRAULIC
  : AGITATOR
  : FEEDING

2. P.T.O
  : SPINNER

1. HYDRAULIC
  : AGITATOR
  : FEEDING

2. P.T.O
  : SPINNER

1. HYDRAULIC
  : AGITATOR
  : FEEDING

2. P.T.O
  : SPINNER

MODEL

IOD-600A

IOD-750A

IOD-900A

CAPACITY(ℓ)

780

970

1160

N. DISC

1

1

1

WIDTH(mm)

1500

1800

2100

SPREADING
WIDTH(m)

8~16

8~16

8~16

FEATURE

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER
