MULTI SPREADER IOD600J, IOD750J, IOD900J, IOD600A, IOD750A, IOD900A, IOD600H, IOD600H, IOD600H details MULTI SPREADER IOD600J, IOD750J, IOD900J, IOD600A, IOD750A, IOD900A, IOD600H, IOD600H, IOD600H details

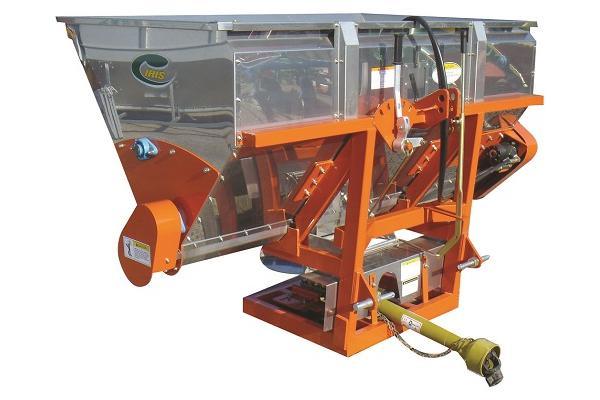

MULTI SPREADER

MULTIPURPOSE SPREADER

IOD600J, IOD750J, IOD900J, IOD600A, IOD750A, IOD900A, IOD600H, IOD600H, IOD600H

Urgent? then use Komachine Service
Description

* Two type special shutter spreads both granule fertilizers and organic compost
* Various materials spreading : organic compost, granule fertilizers, lime, sand, salt, wood chip and etc
* Spinner : P.T.O
* Agitator : Hydraulic motor
* Feeding : Auger by hydraulic motor
* Hopper, precention, spinner, vanes and etc : Stainless Steel
* Types : General(IOD-600J), Mid(IOD-750J), Big(IOD-900J)

SPECIFICATION

MODEL

IOD-600H

IOD-750H

IOD-900H

CAPACITY(ℓ)

780

970

1160

N. DISC

1

1

1

WIDTH(mm)

1500

1800

2100

SPREADING
WIDTH(m)

8~16

8~16

8~16

FEATURE

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

2. BUCKET

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

2. BUCKET

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

2. BUCKET



MODEL

IOD-600J

IOD-750J

IOD-900J

CAPACITY(ℓ)

780

970

1160

N. DISC

1

1

1

WIDTH(mm)

1500

1800

2100

SPREADING
WIDTH(m)

8~16

8~16

8~16

FEATURE

1. HYDRAULIC
  : AGITATOR
  : FEEDING

2. P.T.O
  : SPINNER

1. HYDRAULIC
  : AGITATOR
  : FEEDING

2. P.T.O
  : SPINNER

1. HYDRAULIC
  : AGITATOR
  : FEEDING

2. P.T.O
  : SPINNER



MODEL

IOD-600A

IOD-750A

IOD-900A

CAPACITY(ℓ)

780

970

1160

N. DISC

1

1

1

WIDTH(mm)

1500

1800

2100

SPREADING
WIDTH(m)

8~16

8~16

8~16

FEATURE

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER

1. HYDRAULIC
  : AGITATOR
  : FEEDING
  : SPINNER
