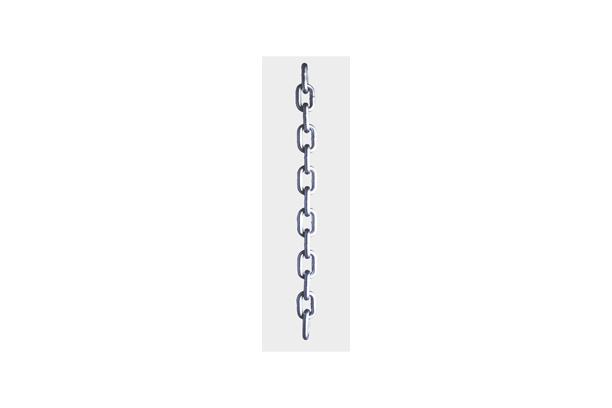

product Image
Public Chain
Model Name
-
Series
Chain
View All
Data
-
Manufacturer information
provider logo
IL SHIN MARINE SERVICE

Ship outfitting, Chain, etc.

Problem with product info?
Update request
Manufacturer
IL SHIN MARINE SERVICE
Product Type
Machine
Brand
-
SKU
123994
Product Name
Public Chain
Model Name
-
Size
-
Weight
-
Product Details

1.  Feature

- POSCO Mild Steel

- Welding Method : flash butt welding

- Much better tensile strength and elasticity


2. Raw Material : Mild Steel

POSCO alloy raw material composed of C, Si, Mm, P, S



3. Specification

ITEMChain Size D (mm)Pitch P (mm)Inside Width B (mm)Weight (kg/m)S.W.L (KN)Proof Load (KN)
SHORT
PUC-6 S61890.782.66.7
PUC-8 S824121.384.711.8
PUC-9 S927141.756.0014.9
PUC-11 S1133172.618.922.3
PUC-13 S1339203.6412.431.2
PUC-16 S1648245.5118.847.2
PUC-19 S1957297.7725.766.6
PUC-22 S22663310.4135.789.2
LONG
PUC-6 L62490.712.66.7
PUC-8 L832121.254.711.8
PUC-9 L936141.586.0014.9
PUC-11 L1144172.368.922.3
PUC-13 L1352203.3012.431.2
PUC-16 L1664245.0018.847.2
PUC-19 L1976297.0425.766.6
PUC-22 L2288339.4435.789.2




4. Applications

Marine Fender, Fishing Net, Oil Fence, and etc
